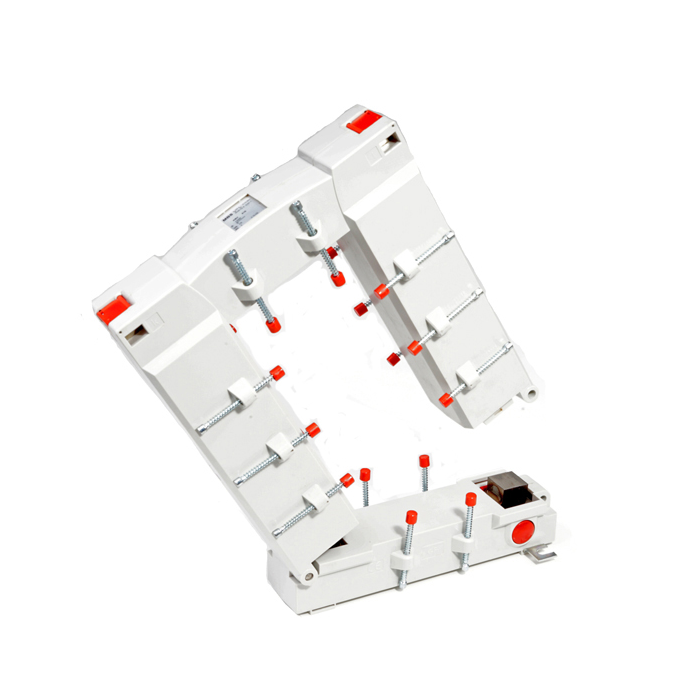

KBU 816 2500/5A SPL/CORE CT cl 0.5
Current transformer with split core:
- The concept of split measuring allows for an easy installation into pre-existing panel boards without the need for additional mounting.
- To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
- The unit is ready for use after the secondary wires are attached.
Specifications:
- KBU 816 split-core current transformers (5A secondary - class 1).
- Primary bar conductor: 80 x 160 mm max.
- MODEL KBU 816.
- RATIO 2500/5A.
- ROUND CONDUCTOR Split core.
- PRIMARY BAR CONDUCTOR 80 x 160 mm maximum.
- DESCRIPTION Split-core current transformer.
- DIMENSIONS (MM) (H)243 X (W)195 X (D)79.
- CLASS 0.5.
- VA 15.
Features:
- Class of isolation: E.
- Um < 0.72 kV is the maximum operational voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
- The current transformers manufactured by MBS AG fully comply with DIN VDE 0414/1, DIN 42600, DIN EN 60044/1, and VBG 4.
| SKU | 80120 |
|---|---|
| Brand | MBS |
