KBU 816 2500/5A SPL/CORE CT cl 1

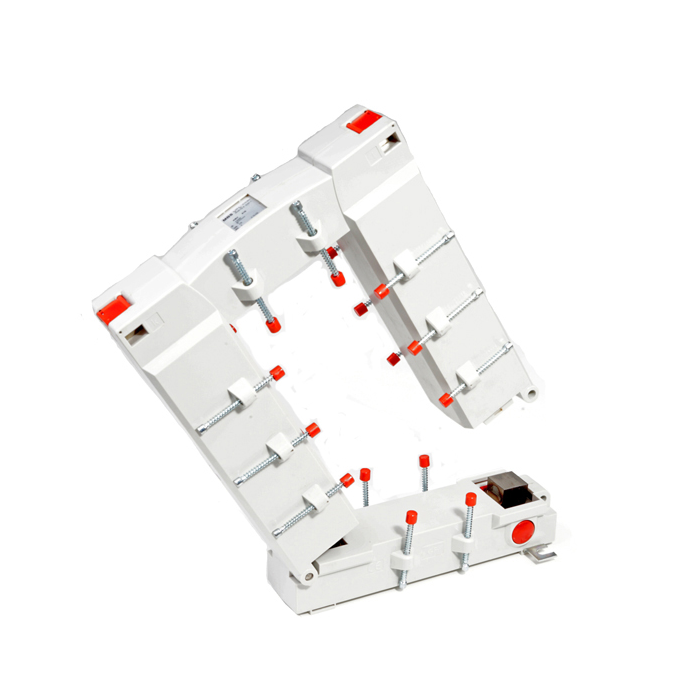

Split-core current transformer:
- The split measuring method makes it easier to integrate into already-existing panel boards without the need for additional mounting.
- The current transformer's locking mechanism can be easily opened, placed around the primary conductor, and locked to ensure that the circuit is closed.
- The unit is operational after the secondary wires are connected.
Specifications:
- KBU 816 split core current transformers (5A secondary - class 1),
- Primary bar conductor: 80 x 160 mm max.,
- MODEL KBU 816,
- RATIO 2500/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 80 x 160 mm maximum,
- DESCRIPTION Split-core current transformer,
- CLASS 1,
- VA 15,
- DIMENSIONS (MM) (H) 243 x (W) 195 x (D) 79
Broad parameters:
- E is the isolation class.
- Operating voltage maximum: 0.72 kV.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1 standards.
| Brand | MBS |
|---|
