KBU 816 3000/5A SPL/CORE CT cl 1

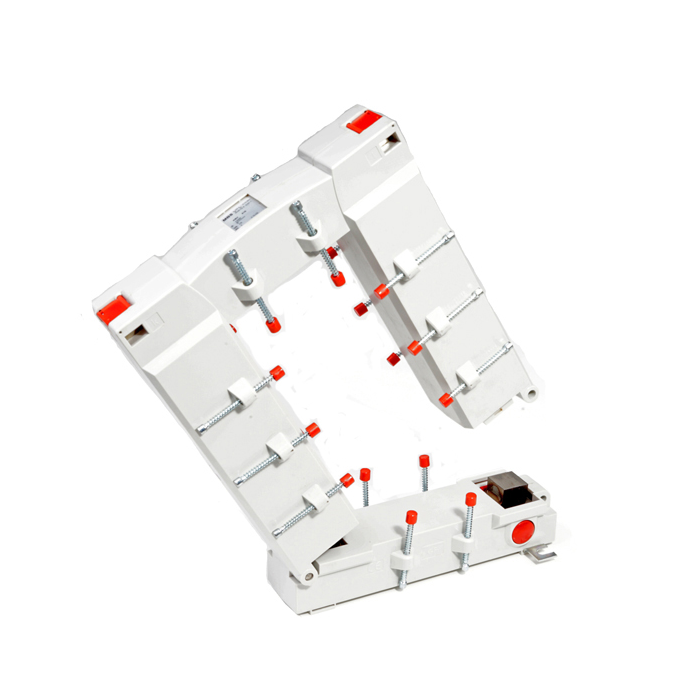

Current transformer with split core:
- There is no need for additional mounting when using the split measurement system, making installation into pre-existing panel boards easier.
- To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
- The device can be used as soon as the secondary conductors are connected.
Specifications:
- KBU 816 split core current transformers (5A secondary - class 1).
- Primary bar conductor: 80 x 160 mm max.
- MODEL KBU 816.
- RATIO 3000/5A.
- ROUND CONDUCTOR Split core.
- PRIMARY BAR CONDUCTOR 80 x 160 mm maximum.
- DESCRIPTION Split-core current transformer.
- CLASS 1.
- VA 30.
- DIMENSIONS (MM) (H) 243 x (W) 195 x (D) 79.
Features:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
| SKU | 80153 |
|---|---|
| Brand | MBS |
