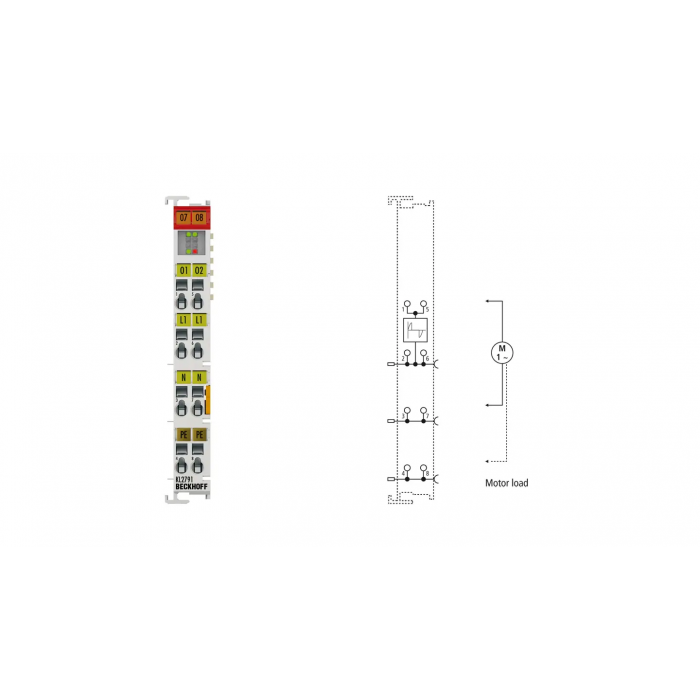

KL2791 Bus Terminal, 1-channel motion interface, AC motor, 230 V AC, 0.9 A

Number of outputs: 1 motor Nominal voltage: 230 V AC Mains voltage: 230 V AC Rated output: ≤ 200 VA Load type: 1-phase AC motors Max. output current: 0.9 A Control type: phase/full wave control Resolution: 1 % Reverse voltage protection: no Electrical isolation: 500 V (K-bus/field voltage), 3750 V AC (1 min.) Leakage current (OFF state): < 1 mA Current consumption power contacts: load only Current consumption K-bus: typ. 95 mA Bit width in the process image output: 1 x 16 bit data (1 x 8 bit control/status optional) Weight: approx. 60 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance conforms to: EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to: EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/see documentation Pluggable wiring for all KSxxxx Bus Terminals Approvals/markings: CE
