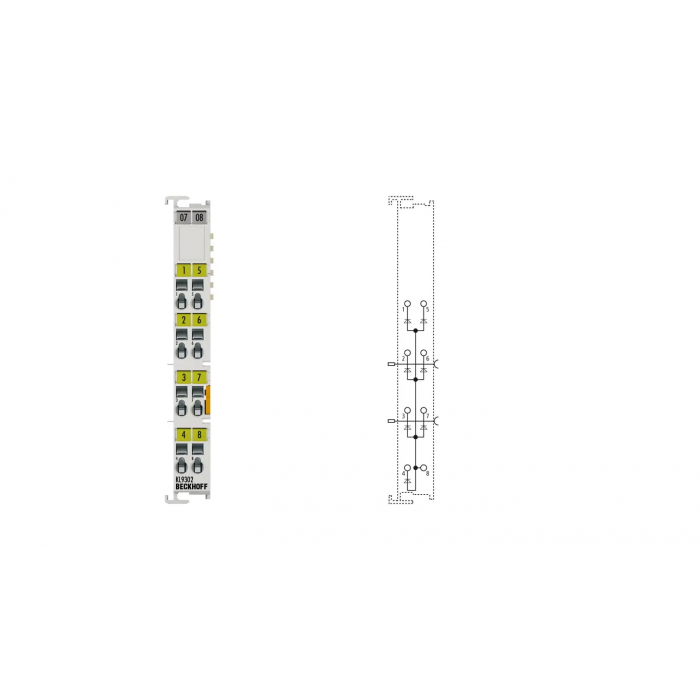

KL9302 Diode array terminal
The KL9302 Bus Terminal contains a diode array consisting of a total of seven diodes with a common anode.
Number of diodes: 7
Interconnection: common anode
Nominal cut-off voltage: 1000 V (diodes)
Output current: 1 A on each diode
Peak current: 2.5 A (100 ms)
Voltage drop: typ. 0.7 V
Isolation voltage (channel/channel): < 200 V
Electrical isolation: 1500 V (K-bus/field)
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
| SKU | KL9302 |
|---|
