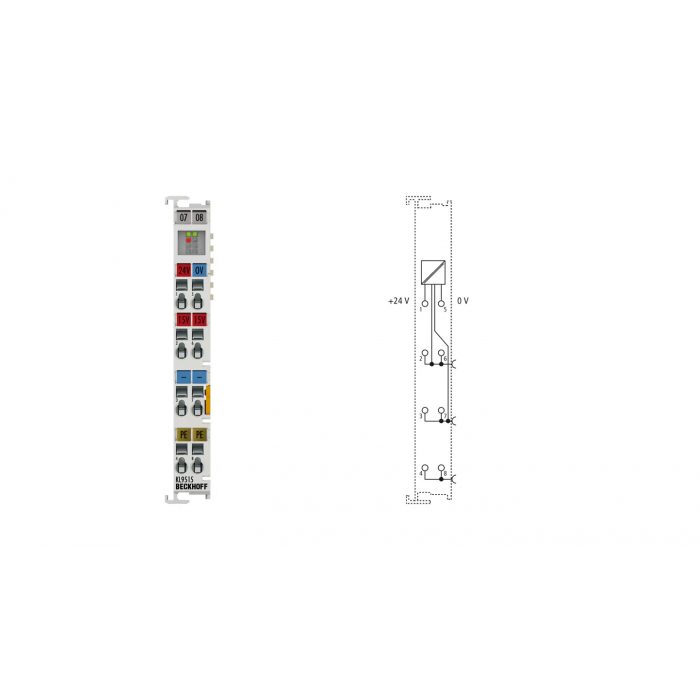

KL9515 Power supply terminal
The KL9515 power supply terminal generates an output voltage of 15 V DC from the (24 V DC) input voltage, which can be accessed at the terminal.
Input voltage: 24 V DC (-15 %/+20 %)
Output voltage: 15 V DC ±1 %
Output current: 0.5 A
Short-circuit proof: yes
Residual ripple: < 5 mV
Special features: stabilized output voltage, overcurrent LED
Weight: approx. 65 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
| SKU | KL9515 |
|---|
