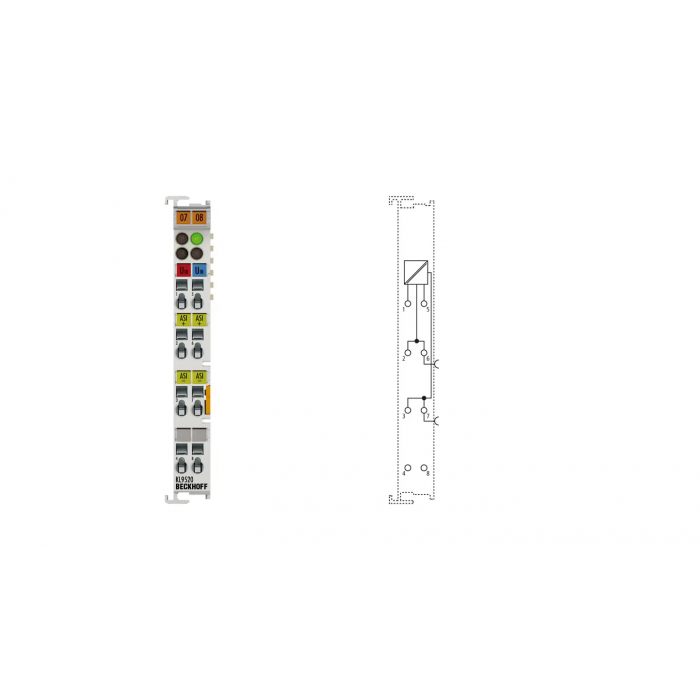

KL9520 AS-Interface potential feed terminal with filter
The KL9520 potential feed terminal uncouples the input and output signal through an integrated filter and enables the supply of AS-Interface networks from standard power supply units or another AS-Interface network.
Input voltage: up to 35 V DC
Output voltage: up to 35 V DC
Current load: max. 2 A
Configuration: no address or configuration setting
Special features: no electrical isolation
Weight: approx. 90 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE
| SKU | KL9520 |
|---|
