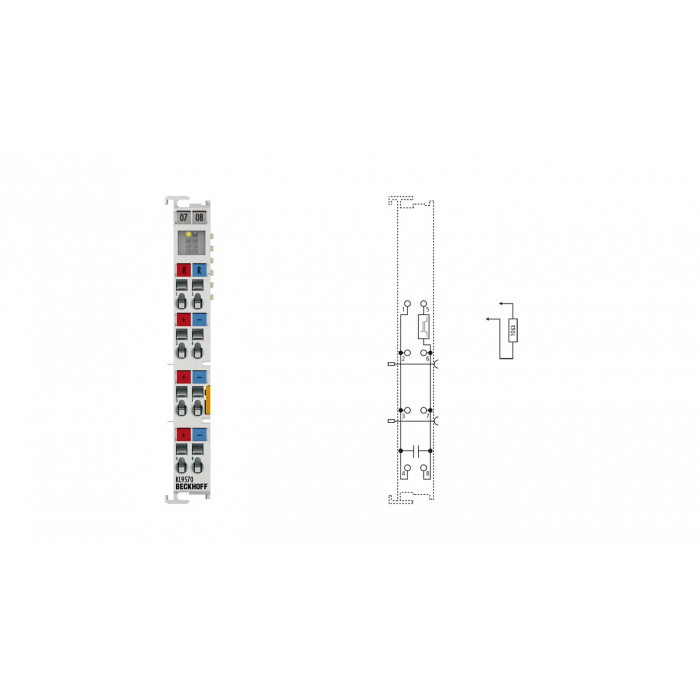

KL9570 Buffer capacitor terminal

Nominal voltage: 50 V Capacity: 500 µF Ripple current (max.): 10 A @ 100 kHz Internal resistance: < 20 mΩ @ 100 kHz Surge voltage protection: > 56 V Recommended braking resistor: ZB8110 Overvoltage control range: ±2 V Braking resistor clock rate: load-dependent, 2-point control Electrical isolation: 1500 V (K-bus/field potential) Weight: approx. 65 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/variable Pluggable wiring: for all KSxxxx Bus Terminals Approvals/markings: CE, ATEX, IECEx Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc Can also be used with Motion-specific accessories with Brake resistorsCan also be used with Motion-specific accessories with Brake resistors
