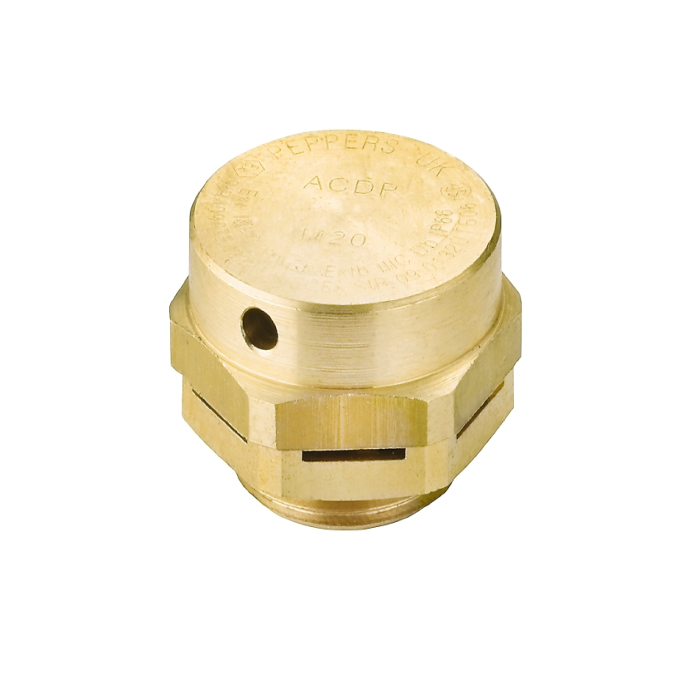

KLIPPON BDX M20 B
KLIPPON M20 B BDX:
- Our product portfolio includes cable glands, plugs, pressure compensation components, adaptors, and accessories including locknuts, sealing rings, flat washers, and earthing rings.
Specifications dimensions and weights:
- Height: 12 mm.
- Height (inches): 0.472 inch.
- Width: 27 mm.
- Width (inches): 1.063 inch.
- Length: 22 mm.
- Length (inches): 0.866 inch.
- Net weight: 62 g.
Temperatures:
- Operating temperature: -60 °C - 200 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
Certificate numbers cable gland:
- Approval conditions: ATEX, IECEX, UL AEx Class Div., UL AEx Class Zone.
- Certificate no. cable gland (ATEX): CML 19ATEX3347X.
- Certificate no. cable gland (CSA): E340660.
- Certificate no. cable gland (IECEx): IECEx CML 19.0105X.
- Identification: Ex e IIC Gb, Ex ta IIIC Da.
General information:
- AF size 1: 27 mm.
- Air flow: 0.25 l / 1 h.
- Cable glands: M 20.
- Explosion protection type: Improved safety Ex e.
- External thread: M 20.
- Filter: Bronze insert (90% copper, 10% tin).
- Halogen: halogen-free.
- Head diameter: 26.2 mm.
- Impact resistance: 7 J ATEX version.
- Length of thread: 10 mm.
- Material: Brass.
- Take note of the following protective class:
- The venting element should be installed on the bottom side of the enclosure, oriented vertically with the thread upwards, and at the lowest location to allow for proper drainage.
- Before installation, the included assembly instructions must be carefully read and followed.
- The water flow rate was measured in a water-filled, empty enclosure with no pressure or heat-producing interior components.
- The water flow rate might vary depending on operational characteristics and ambient circumstances.
- O-Ring: Silicone.
- Operating temperature range, max.: 200 °C.
- Operating temperature range, min.: -60 °C.
- Pitch of thread: 1.5 mm.
- Protection class (UL): Type 4.
- Protection degree: IP66.
- Protection degree with GWDR: IP66.
- Sealing: Silicone.
- Silicone: Yes.
- Standards: IEC 60079-0, IEC 60079-7, IEC 60079-31.
- Tightening torque: 5 Nm.
- Torque for connecting adapter, max.: 5 Nm.
- Torque for connecting adapter, min.: 5 Nm.
- Torque for lock nut, max.: 5 Nm.
- Torque for lock nut, min.: 5 Nm.
- UL 94 flammability rating: None.
