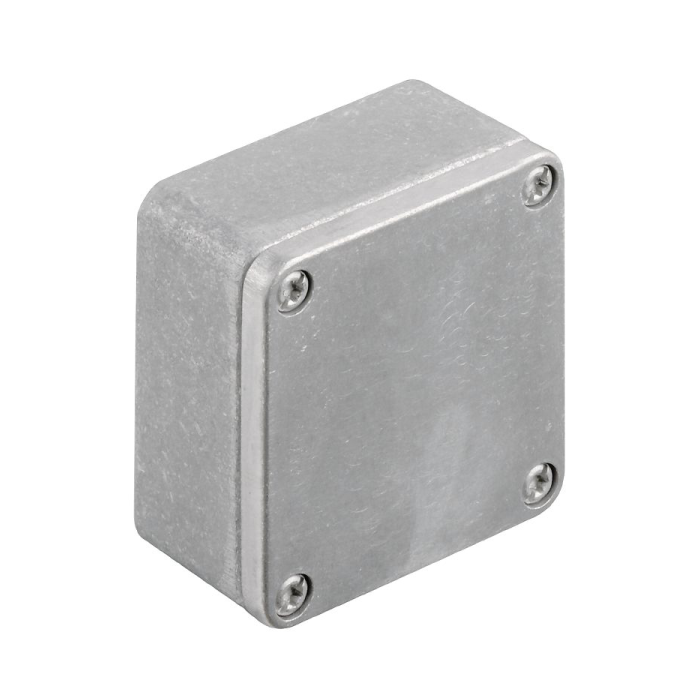

ENCLOSURE K RANGE KLIPPON K01
Key Features:
- Significant Ingress Protection is ensured by the High Protection Class of IP66.
- Able to sustain hits up to 7 Joules of force on impact.
- Suitable for tough situations because to its corrosion resistance.
- Choices for Mounting: Mounting feet or fixing holes allow for direct wall mounting.
- The lid is fastened with captive crosshead screws made of stainless steel.
- For improved impermeability, use a silicone or chloroprene-based moulded gasket for sealing.
- Based on setup, the fire rating can reach up to E60.
- UL, ATEX, IECEX, and other certifications indicate that the product is approved for usage in hazardous environments.
Specifications:
- Model: Klippon K01.
- Dimensions: 64 mm (Height) x 58 mm (Width) x 34 mm (Depth).
- Material: Aluminium AlSi12, untreated.
- Colour: Silver.
- Operating Temperature: -40°C to 80°C.
- Mounting Dimensions:
- Width: 58 mm.
- Height: 64 mm.
- Net Weight: Approximately 146 grams.
- Cable Glands: Various sizes available (M16, M20, etc.).
| Brand | Weidmuller |
|---|
