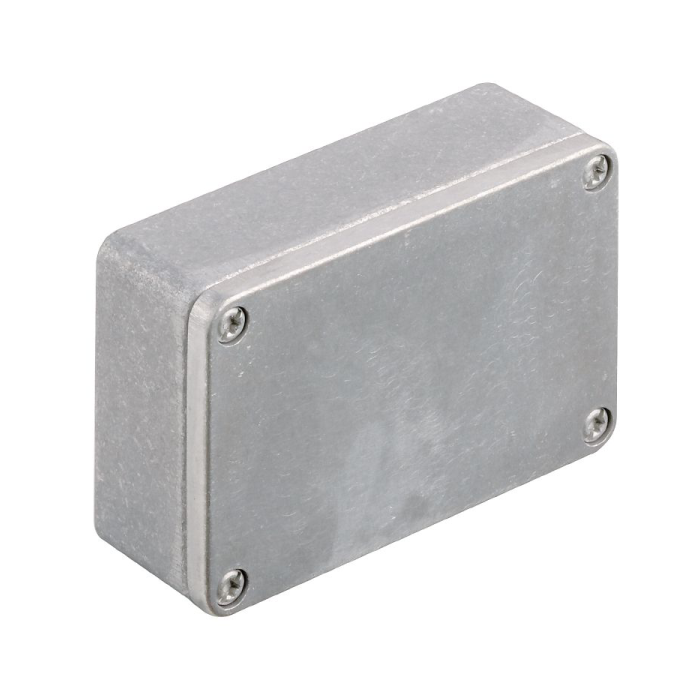

ENCLOSURE K RANGE KLIPPON K02
Key Features:
- High Ingress Protection is ensured by the IP66 High Protection Class.
- Impact Resistance: Capable of withstanding blows up to 7 Joules.
- Durability: Fit for abrasive conditions.
- Mounting Options: Fixing holes or mounting feet can be used for direct wall mounting.
- Lid Fastening: Stainless steel captive crosshead screws are used to keep the lid in place.
- Sealing: For enhanced impermeability, use a silicone or chloroprene-based moulded gasket.
- Fire Rating: Depending on setup, up to an E60 fire rating is possible.
- Certifications: ATEX, IECEX, UL, and other certifications for usage in hazardous locations.
Specifications:
- Model: Klippon K02.
- Dimensions: 64 mm (Height) x 98 mm (Width) x 34 mm (Depth).
- Material: Aluminium AlSi12, untreated.
- Colour: Silver.
- Operating Temperature: -40°C to 80°C.
- Mounting Dimensions:
- Width: 98 mm.
- Height: 64 mm.
- Net Weight: Approximately 202 grams.
- Cable Glands: Various sizes available (M16, M20, etc.).
| Brand | Weidmuller |
|---|
