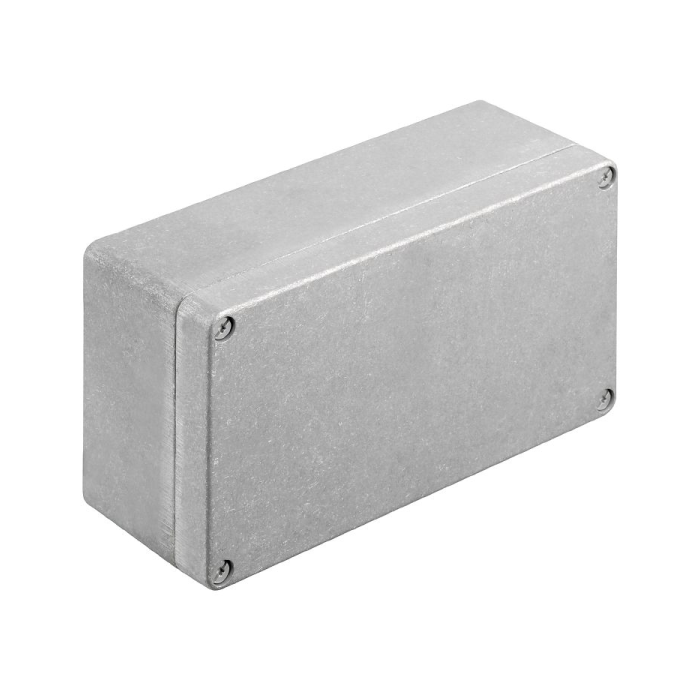

ENCLOSURE K RANGE KLIPPON K51
Key Features:
- High ingress protection is ensured by the IP66 High Protection Class.
- Impact Resistance: Has a maximum impact resistance of 7 Joules.
- Corrosion resistance makes it appropriate for severe settings.
- Mounting Options: Mounting feet or fixing holes can be used for direct wall mounting.
- Lid Fastening: Fastened with captive crosshead screws made of stainless steel.
- Sealing: For improved impermeability, use a silicone or chloroprene-based moulded gasket.
- Fire Rating: Depending on the configuration, up to an E60 fire rating.
- Certifications: ATEX, IECEX, UL, and other certifications for usage in hazardous environments.
Specifications:
- Model: Klippon K51.
- Dimensions: 120 mm (Height) x 220 mm (Width) x 81 mm (Depth).
- Material: Aluminium AlSi12, untreated.
- Colour: Silver.
- Operating Temperature: -40°C to 80°C.
- Mounting Dimensions:
- Width: 204 mm.
- Height: 82 mm.
- Net Weight: Approximately 1,398 grams.
- Cable Glands: Various sizes available (M16, M20, etc.).
Brand | Weidmuller |
---|
