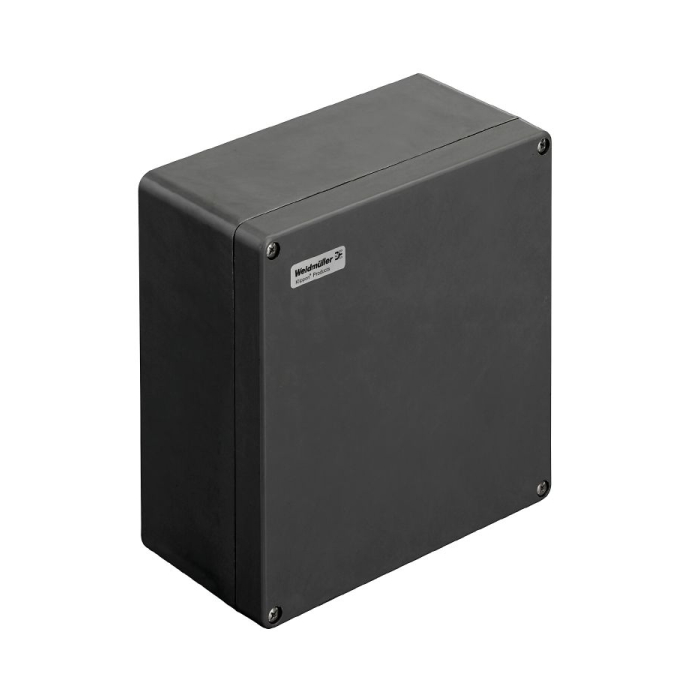

KLIPPON POK 252512 EX
Pricing available on request
Description:
- The polyester enclosures in the Klippon® POK family are made to withstand extreme conditions and potentially explosive atmospheres while integrating seamlessly with general-purpose electrical and electronic equipment and control components.
- The Klippon POK enclosure series is designed to fulfil the tough demands of the industrial automation, process control, and energy industries, as well as signal and component protection.
Specifications:
- Version: Klippon POK (polyester empty enclosure), Empty enclosure.
- Quantity: 1.
- Dimensions:
- Depth: 120 mm.
- Height: 250 mm.
- Height of lowest version: 120 mm.
- Width: 255 mm.
- Mounting dimension – height: 200 mm.
- Mounting dimension – width: 235 mm.
- Access opening: height: 238.02 mm.
- Access opening: width: 243.02 mm.
- Operating temperature: -55 °C...100 °C.
- Areas of use: Explosive risk zone, Harbour facilities, Machine construction, Process industry, Transportation.
- Enclosure attachment: Installation through the housing rear wall, Fixing lugs.
- No Flange plate.
- Impact resistance: 7 J ATEX version.
- Lid attachment: Slotted/Phillips screws.
- Materials:
- Material: Glass fibre-reinforced polyester.
- Material thickness of cover: 5 mm.
- Material thickness of enclosure: 5.99 mm.
- Seal material: Silicone.
- Surface finish: untreated, polished.
- Number of lid screws: 4.
- Protection degree: IP66.
- Standards:
- DIN EN 62208 - Empty enclosure standard
- IEC 60079-0.
- IEC 60079-7.
- IEC 60079-31.
- Torque for lid screws: 2.5 Nm.
- UL 94 flammability rating: V-0.
| Brand | Weidmuller |
|---|
