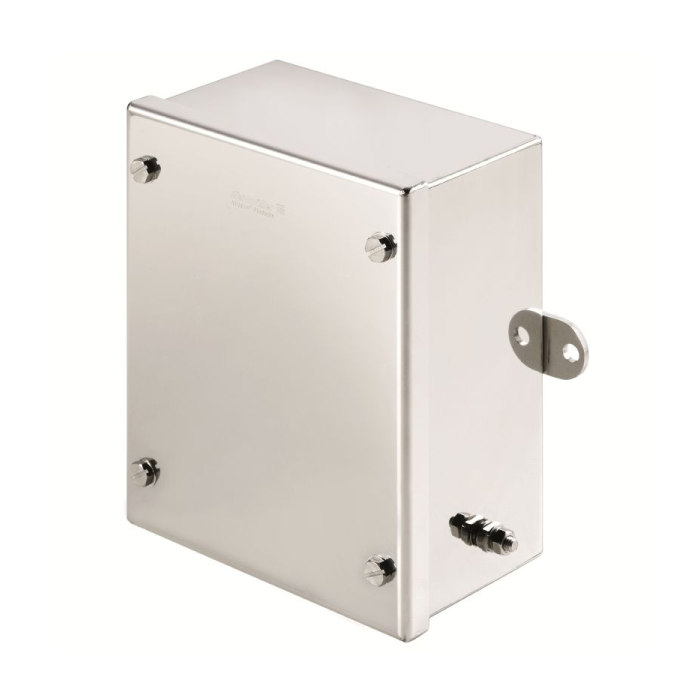

KLIPPON STB 1.1 SS
Description:
- Compact and strong, the Weidmüller Klippon® STB 1.1 SS stainless steel enclosure is perfect for use in settings requiring strong protection.
- The Klippon® STB line, which includes this compact terminal box, is renowned for its dependable performance and premium build quality.
- The enclosure has a mirror-polished surface and is constructed of stainless steel 1.4404 (316L), which offers superior resistance to corrosion and environmental elements.
- It is appropriate for a variety of industrial applications, such as explosive danger zones, packaging, transportation, process industries, and marine engineering, because it is made to safely house electrical and electronic components.
Specifications:
- Item Number: 1002750000.
- Material: Stainless steel 1.4404 (316L), mirror polished.
- Colour: Silver.
- Dimensions:
- Height: 150 mm (5.906 inches).
- Width: 120 mm (4.724 inches).
- Depth: 80 mm (3.15 inches).
- Net Weight: 1,451 g.
- Protection Class: IP66.
- Temperature Range:
- Maximum: 100°C.
- Minimum: -60°C.
- Mounting Feet: Welded-on mounting foot with 8 mm holes.
- Lid Attachment: M5 hexagonal screws with slot and 10 mm distance across flats.
- Seal Material: Silicone.
- Impact Resistance: 10 J (standard), 7 J (ATEX version).
- Certifications:
- ATEX.
- DNV.
- IECEx.
- INMETRO.
- LR.
- RMRS.
- UL AEx Class Div.
- UL AEx Class Zone.
- cULus.
- KC.
- CCC.
| Brand | Weidmuller |
|---|
