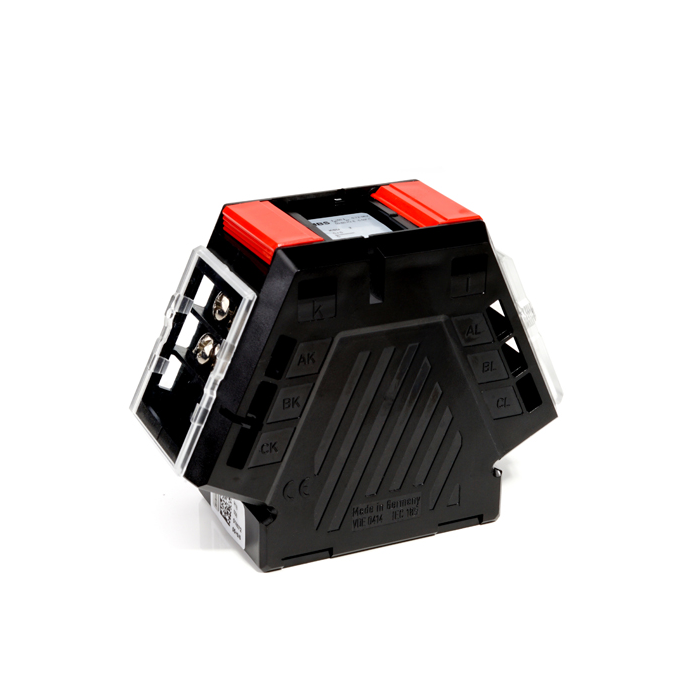

KSU 2/3 5+5+5/5A SUMMATION CT cl1
General details:
- Class of isolation: E.
- Um 0.72 kV is the maximum operational voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
- MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Summation current transformers (5A secondary - class 1),
- KSU 2/3 summation current transformers,
- MODEL KSU 2/3,
- RATIO 5+5+5/5A,
- DESCRIPTION Summation wound current transformer,
- CLASS 1,
- VA 10,
- DIMENSIONS (MM) (H) 94 x (W) 127 x (D) 57
| Brand | MBS |
|---|
