KT 14

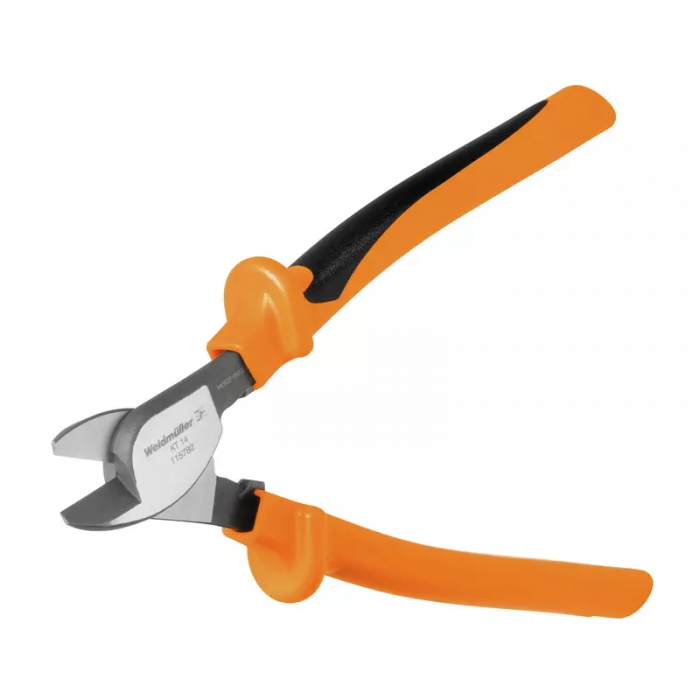

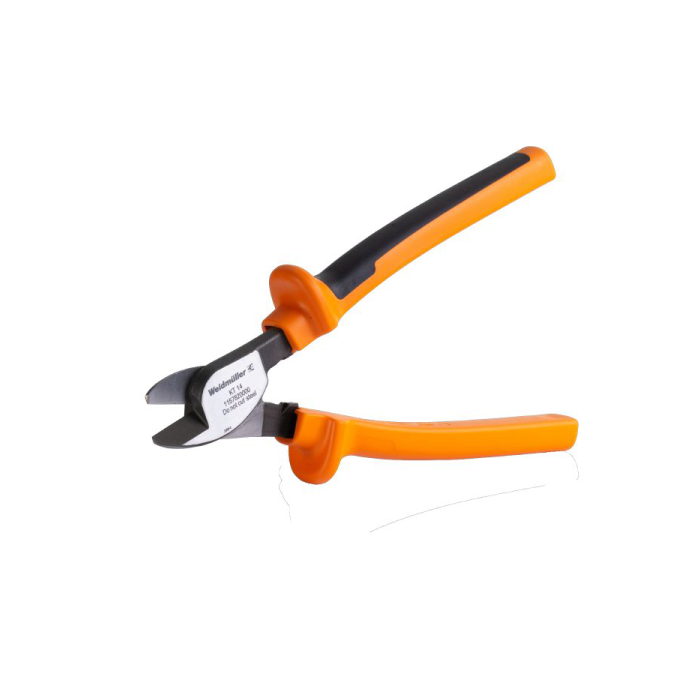

KT 14:
- Cutting tools for conductors with outer diameters of 8 mm, 12 mm, 14 mm, and 22 mm.
- Pinch-free cutting of copper and aluminum conductors with minimal physical effort is made possible by the unique geometry of the blade.
- The cutting tools (KT 8 to KT 22) also include VDE and GS-tested protective insulation up to 1,000 V in compliance with EN/IEC 60900.
Specifications dimensions and weights:
- Depth: 30 mm.
- Depth (inches): 1.181 inch.
- Height: 63.5 mm.
- Height (inches): 2.5 inch.
- Width: 225 mm.
- Width (inches): 8.858 inch.
- Net weight: 325.44 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0.
Technical data:
- Description of article: Cutting tool for up to 14 mm outside diameter.
- Version: One-hand mechanical.
Cutting tools:
- Copper cable - flexible, max.: 70 mm².
- Copper cable - flexible, max. (AWG): 2/0 AWG.
- Copper cable - solid, max.: 16 mm².
- Copper cable - solid, max. (AWG): 6 AWG.
- Copper cable - stranded, max.: 35 mm².
- Copper cable - stranded, max. (AWG): 2 AWG.
- Copper cable, max. diameter: 14 mm.
- Data / telephone / control cable, max. Ø: 14 mm.
- Single-core aluminium cable, max.(mm²): 35 mm².
- Stranded aluminium cable, max (mm²): 70 mm².
- Stranded aluminium cable, max. (AWG): 2/0 AWG.
- Stranded aluminium cable, max. diameter: 14 mm.
| Brand | Weidmuller |
|---|
