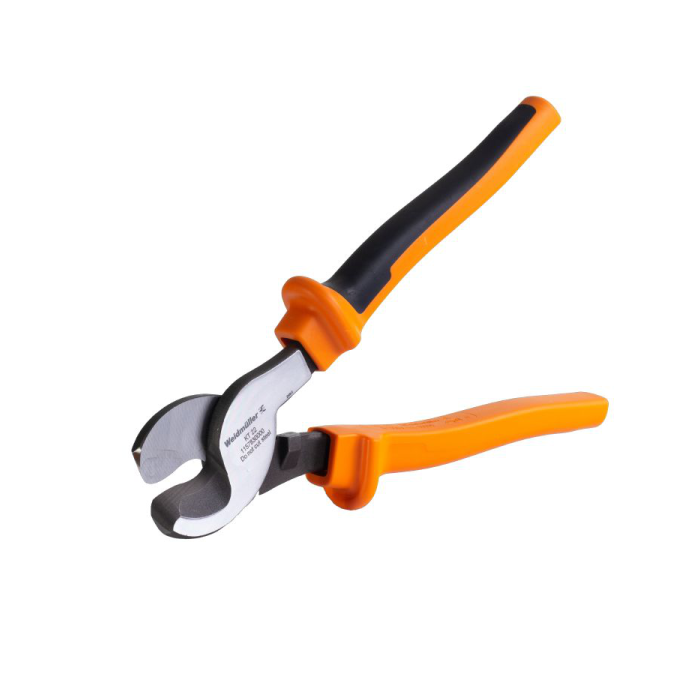

KT 22
KT 22:
- Cutting tools for conductors with outer diameters of 8 mm, 12 mm, 14 mm, and 22 mm.
- Pinch-free cutting of copper and aluminum conductors with minimal physical effort is made possible by the unique geometry of the blade.
- The cutting tools (KT 8 to KT 22) also include VDE and GS-tested protective insulation up to 1,000 V in compliance with EN/IEC 60900.
Specifications dimensions and weights:
- Depth: 31 mm.
- Depth (inches): 1.22 inch.
- Height: 71.5 mm.
- Height (inches): 2.815 inch.
- Width: 249 mm.
- Width (inches): 9.803 inch.
- Net weight: 511.8 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0.
Technical data:
- Description of article: Cutting tool for up to 22 mm outside diameter.
- Version: One-hand mechanical.
Cutting tools:
- Copper cable - flexible, max.: 70 mm².
- Copper cable - flexible, max. (AWG): 2/0 AWG.
- Copper cable - solid, max.: 150 mm².
- Copper cable - solid, max. (AWG): 4/0 AWG.
- Copper cable - stranded, max.: 95 mm².
- Copper cable - stranded, max. (AWG): 3/0 AWG.
- Copper cable, max. diameter: 13 mm.
- Data / telephone / control cable, max. Ø: 22 mm.
- Single-core aluminium cable, max.(mm²): 120 mm².
- Stranded aluminium cable, max (mm²): 95 mm².
- Stranded aluminium cable, max. (AWG): 3/0 AWG.
- Stranded aluminium cable, max. diameter: 13 mm.
| Brand | Weidmuller |
|---|
