KT 55
Pricing available on request
Description:
- Cutting tools in mechanical ratchet configuration.
- Designed for non-pinch cutting of copper and aluminium conductors.
- Easy to use thanks to optimal leverage and a beautifully constructed cam mechanism.
Specifications:
- Weight and Dimensions:
- Depth: 45 mm.
- Height: 115 mm.
- Width: 365 mm.
- Net weight: 1486.7 g.

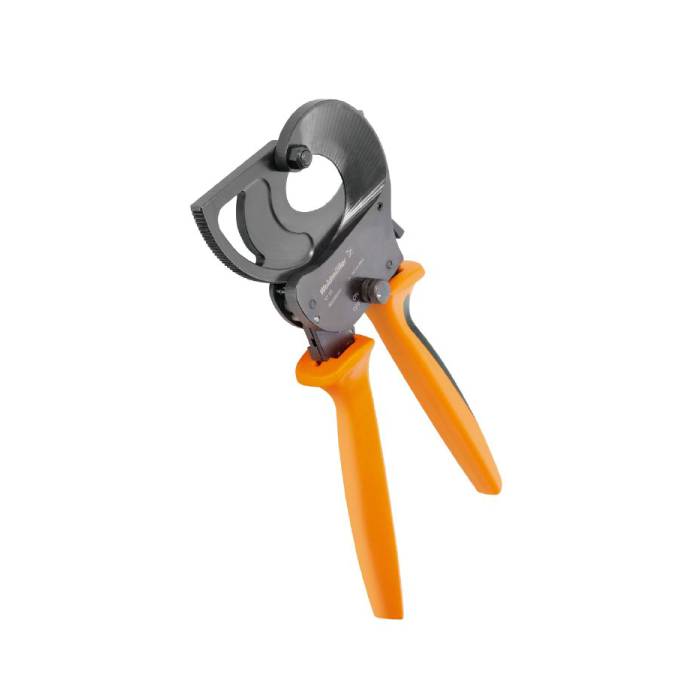

- Description of article: Front cable cutter up to 55mm outer diameter.
- Version: One-hand mechanical.
- Cutting Tools:
- Copper sector cable: 3 x 150 SM.
- Copper cable - flexible, max. (kcmil): 1000 kcmil.
- Copper cable - flexible, max.: 500 mm².
- Copper cable - stranded, max. (kcmil): 1000 kcmil.
- Copper cable - stranded, max.: 500 mm².
- Copper cable, max. diameter: 55 mm.
- Data / telephone / control cable, max.: Ø 55 mm.
- Aluminium sector cable: 4 x 150 SE.
- Stranded aluminium cable, max. (kcmil): 1000 kcmil.
- Stranded aluminium cable, max (mm²): 500 mm².
- Stranded aluminium cable, max. diameter: 55 mm.
| SKU | 9202060000 |
|---|---|
| Brand | Weidmuller |
