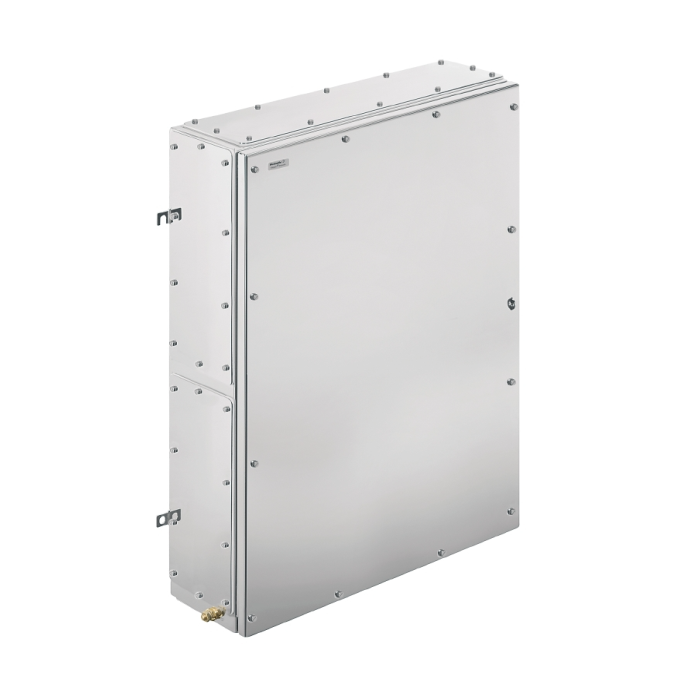

KTB MH 916120 S4E1
Description:
- A premium stainless-steel enclosure, the Weidmüller Klippon® TB MH 916120 S4E1 is intended for industrial applications needing sturdy and dependable protection.
- This enclosure is a member of the Klippon® TB MH series, which is renowned for its robustness and ability to withstand challenging climatic conditions.
- This enclosure is perfect for housing electrical and electronic components in challenging environments since it is made of stainless steel 1.4404 (316L) and electropolished for increased corrosion resistance.
- Long-term performance and dependability are guaranteed by its multi-hinge design, which makes maintenance and access simple.
Specifications:
- Item Number: 1195560000.
- Material: Stainless steel 1.4404 (316L), electropolished.
- Colour: Silver.
- Dimensions:
- Height: 914 mm (35.984 inches).
- Width: 610 mm (24.016 inches).
- Depth: 200 mm (7.874 inches).
- Mounting Dimensions:
- Height: 559 mm.
- Width: 636 mm.
- Net Weight: 23,840 g.
- Protection Class: IP66 (limited to IP66 protection when used in temperatures greater than 105°C).
- Temperature Range:
- Maximum: 135°C.
- Minimum: -60°C.
- Gland Plates: Bottom.
- Mounting Feet: 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet).
- Earth Stud: Welded-on M6 stainless-steel earth stud in enclosure body and lid.
- Certifications:
- EU Declaration of Conformity.
- UKCA Declaration of Conformity.
- Attestation of Conformity for railway applications.
| Brand | Weidmuller |
|---|
