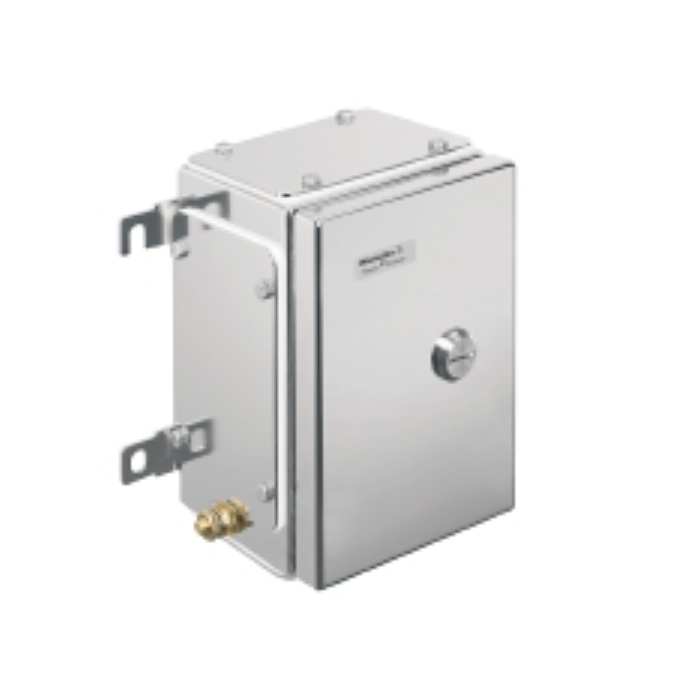

KTB QL 221513 S4E1 Empty Stainless Steel Enclosure
Description:
- The Weidmüller Klippon® TB QL 221513 S4E1 is a high-end stainless-steel enclosure designed to provide dependable protection for electrical components in challenging environments.
- The enclosures from the Klippon® TB QL series are well known for their versatility and dependability. This one is not any different.
- The quarter-turn lock mechanism makes it simple to access and maintain the confined components.
- The electropolished finish is suitable for both indoor and outdoor use due to its resistance to corrosion.
Specifications:
- Material: Stainless steel 1.4404 (316L), electropolished.
- Dimensions:
- Height: 229 mm.
- Width: 152 mm.
- Depth: 133 mm.
- Protection Class: IP66.
- Gland Plates: Bottom, top, left, right.
- Mounting:
- 4 welded mounting feet with 11 mm holes.
- M6 stainless-steel earth stud in enclosure body and lid.
- Temperature Range: -60 °C to +135 °C.
- Impact Resistance: 7 J (ATEX applications), 10 J (industrial applications).
- Certifications: ATEX, IECEx, cULus.
| Brand | Weidmuller |
|---|
