KTB QL 303015 S4E1
Pricing available on request
Description:

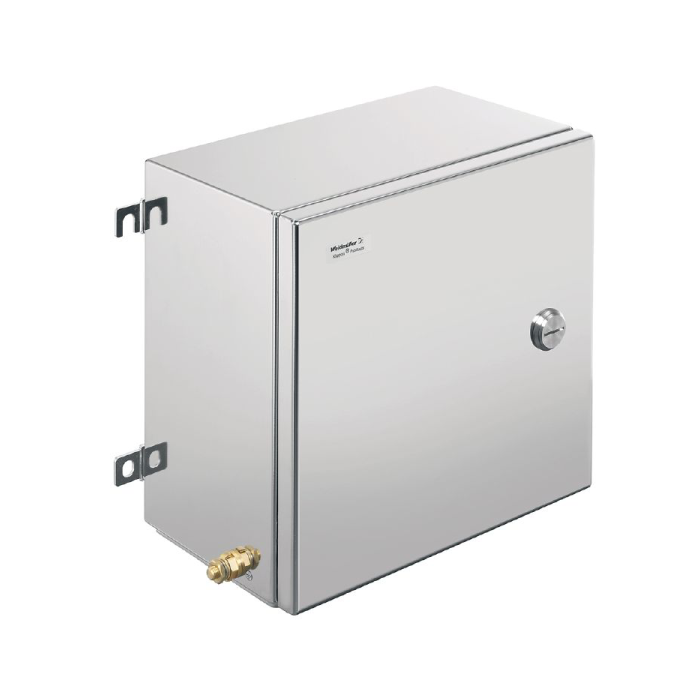

- A premium stainless-steel enclosure, the Weidmüller Klippon® TB QL 303015 S4E1 is made to offer reliable protection for electrical components in harsh settings.
- The Klippon® TB QL series enclosures are renowned for their dependability and adaptability. This one is no exception.
- The contained components may be easily accessed and maintained thanks to the quarter-turn lock mechanism.
- Because of the electropolished finish's corrosion resistance, it can be used in both indoor and outdoor settings.
Specifications:
- Material: Stainless steel 1.4404 (316L), electropolished.
- Dimensions:
- Height: 306 mm.
- Width: 306 mm.
- Depth: 150 mm.
- Protection Class: IP66.
- Gland Plates: Bottom.
- Mounting:
- 4 welded mounting feet with 11 mm holes.
- M6 stainless-steel earth stud in enclosure body and lid.
- Temperature Range: -60 °C to +135 °C.
- Impact Resistance: 7 J (ATEX applications), 10 J (industrial applications).
- Certifications: ATEX, IECEx, cULus.
| Brand | Weidmuller |
|---|
