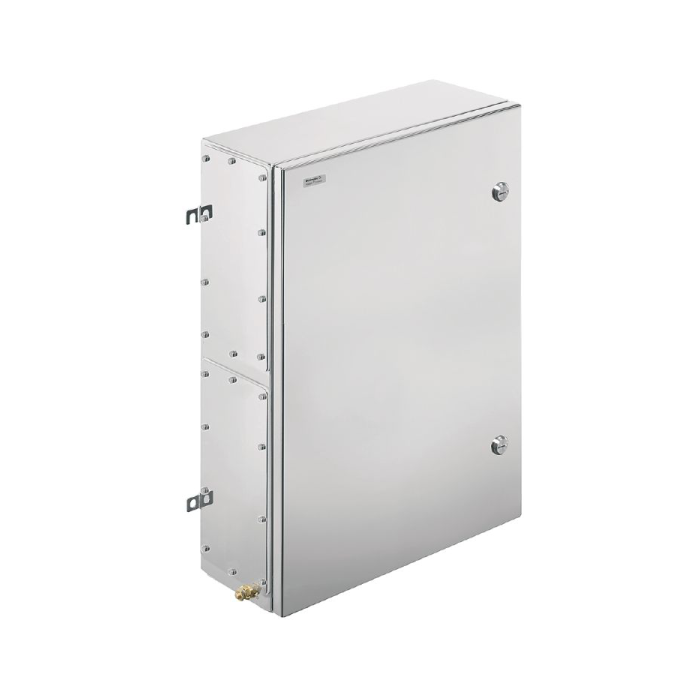

KTB QL 765020 S4E1
Pricing available on request
Description:
- A premium, empty stainless-steel enclosure made for tough industrial settings is the Weidmüller Klippon® TB QL 765020 S4E1.
- The electropolished stainless steel 1.4404 (316L) used in the construction of this terminal box ensures durability and corrosion resistance. It also has a quarter lock mechanism.
- It is perfect for usage in risky environments, such as the chemical, offshore, and oil and gas sectors.
Specifications:
- Dimensions:
- Height: 762 mm.
- Width: 508 mm.
- Depth: 200 mm.
- Material: Stainless steel 1.4404 (316L), electropolished.
- Gland Plates: Bottom.
- Protection Class: IP66 (limited to IP66 when used in temperatures above 105°C).
- Mounting: 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet).
- Environmental Compliance:
- Temperature range: -60°C to 135°C.
- Certifications:
- ATEX, CCoE, DNV, IECEX, INMETRO, KC, NEPSI, CCC, UL AEx Class Div., UL AEx Class Zone, cULus.
- GTIN (EAN): 4032248983292.
| Brand | Weidmuller |
|---|
