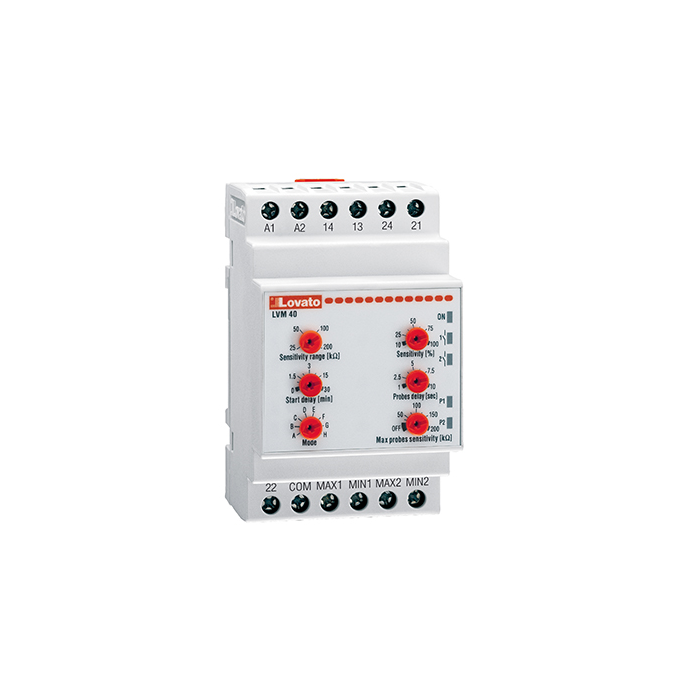

LIQUID LEVEL CONTROL RELAY-5PROBE
Level control relays in the LVM series:
- The LVM40 has five detection probes: Com, Min1, Max1, Min2, and Max2.
- Sensitivity 2.5 - 200Ω (individual foam detection Max adjustment)
- Pump start delay 0 - 30 minutes; probe signal delay 1 - 10 seconds.
- Typical filling and alarms, or Typical emptying and alarms.
- Emptying with change control over startup priority.
- Priority start-ups change control filling.
- Alarms, tank filling, and well drainage.
Features in general:
- Monitoring of liquid levels that are electrically conductive.
- DIN rail attachment that is modular and fits conventional MCBs.
- There is double insulation between the output relay, electrodes, and supply.
- SERIES: LVM
- DESCRIPTION: 5 probe liquid level control relays
- ADJUSTABLE SENSITIVITY: 2.5 - 200Ω
- SUPPLY VOLTAGE: 220 - 240 VAC
- MODULE WIDTH (MM): 54 (aligns with standard MCB's)
| Brand | Lovato electric |
|---|
