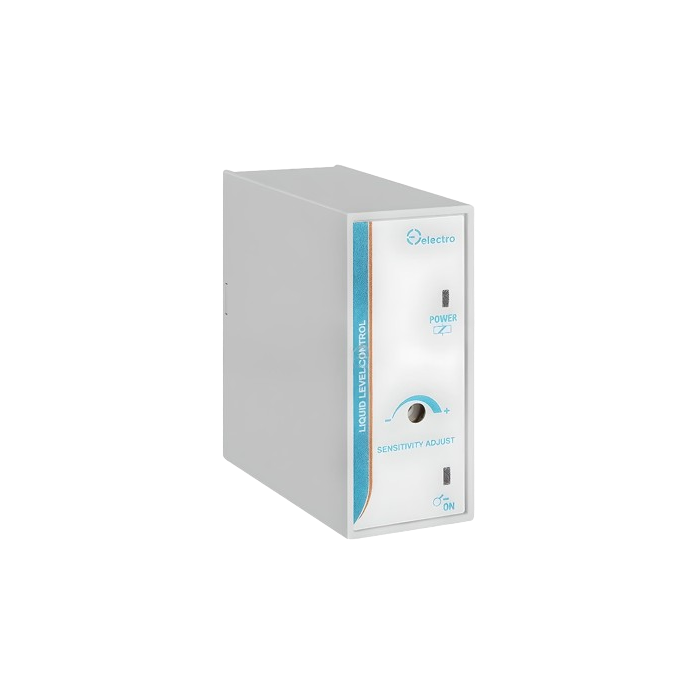

LIQUID LEVEL CONTROLLER 110VAC

ZAR 868.85
Out of stock
SKU
LV1110A

Controller of Liquid Levels:

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • Conductive liquid level control unit with filling and emptying configurations.
  • The device can be utilized as a three-probe system to regulate the HIGH and LOW levels of a reservoir, or as a two-probe system for alarm purposes.
  • By connecting all commons (pin7), a reservoir can use up to four LV1.
  • It is also possible to modify the unit's sensitivity.

Features:

  • Adaptable sensitivity feature with fail-safe control.
  • Probe signal with low voltage.
  • LEDs for the power supply ON and relay ON.
  • Selectable DIP switch on back COMPLETING/EMPTYING.
  • Failure-safe monitoring and control of elevated and/or lowered levels.
  • AC probe signal modulation to avoid electrolytic corrosion.

Liquid conductive controller:

  • FUNCTION: Emptying/ filling.
  • CONTACT: 10A SPDT.
  • PROBE VOLTAGE: 4 VAC.
  • PROBE CURRENT: 2.5mA.
  • PROBE FREQUENCY: 100Hz.
  • SENSITIVITY: 4 - 50Ω.
  • RATED VOLTAGE: 250V.
  • MECHANICAL LIFE: 10x106 cycles.
  • PROTECTION INDEX IP: IP 20.
  • OPERATING TEMPERATURE: -10 to + 50°C.
  • STORAGE TEMPERATURE: -50 to + 85°C.
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
More Information
Brand Electrodev
