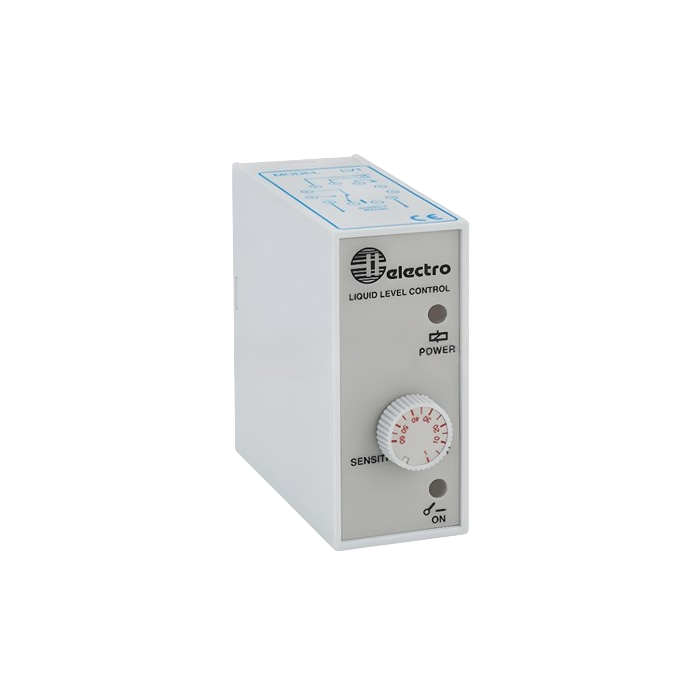

LIQUID LEVEL CONTROLLER 230VAC, DC capacitive probe controller
Level Controller with Capacitive Effect:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Any liquid or granule that can be set up for FILLING or EMPTYING needs a level control unit.
- The device can be used as a two-probe system to manage HIGH and LOW levels or a reservoir, or it can be utilized as a single probe system for alarm reasons.
- The device includes a power supply for the two NPN capacitive proximity sensors.
Features:
- Feature for fail-safe control.
- LEDs for the power supply ON and relay ON.
- Energy source for two three-wire NPN proximity switches.
- Selectable DIP switch on back COMPLETING/EMPTYING.
DC capacitive probe controller:
- FUNCTION: Emptying/ filling.
- CONTACT: 10A SPDT.
- RATED VOLTAGE: 250V.
- MECHANICAL LIFE: 10x106 cycles.
- PROTECTION INDEX IP: IP 20.
- OPERATING TEMPERATURE: -10 to + 50°C.
- STORAGE TEMPERATURE: -50 to + 85°C.
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
| Brand | Electrodev |
|---|
