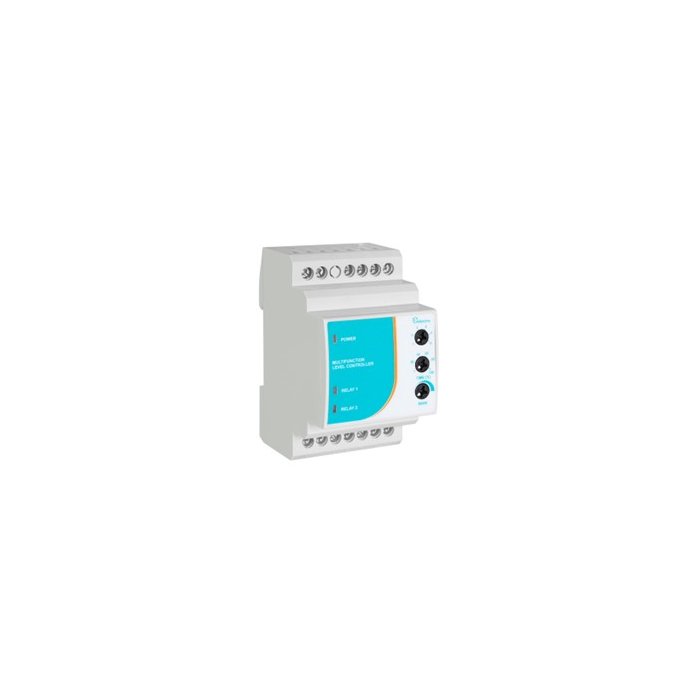

LIQUID LEVEL CONTROLLER 4 PROBE 230VAC
Liquid Level Timer:
- Adjustable sensitivity level control relay for conductive liquids that can be used for filling and emptying applications.
- The device can be configured with two wire applications for alarm indication or three wire applications to control levels between High and Low probe.
- A front slide switch is used to select between filling and emptying.
Features:
- Relay with 10A SPDT output.
- Controlled by a microprocessor.
- AC probe signal with low voltage.
- Adjustable sensitivity on the front face.
- Mountable on a modular 35.5mm DIN rail.
- Choosing the Filling/Emptying front face.
- Relay and power supply ON LED indicator.
Specifications:
- DESCRIPTION: Liquid level controllers.
- NUMBER OF PROBES: 4probes + communication.
- FUNCTION: Emptying/filling with alarm, emptying/filling with pump priority, container filling/well-draining with alarm, electrode test.
- CONTACT: 10A SPDT.
- PROBE VOLTAGE: 24 VDC.
- PROBE CURRENT: 2.5 mA.
- PROBE FREQUENCY: 100 Hz.
- RATED CURRENT: 10A.
- RATED VOLTAGE: 250V.
- MECHANICAL LIFE: 10x106 cycles.
- PROTECTION INDEX IP: IP 20.
- OPERATING TEMPERATURE: -10 to + 50°C.
- STORAGE TEMPERATURE: -50 to + 85°C.
- DIMENSIONS (MM): (H) 92 x (W) 54 x (D) 64.
| Brand | Electrodev |
|---|
