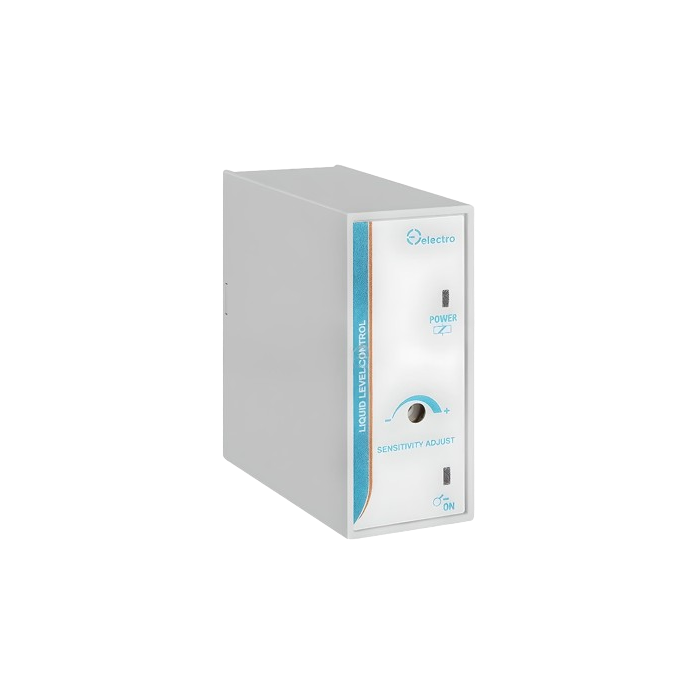

LIQUID LEVEL CONTROLLER 400VAC
Controller of Liquid Levels:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Conductive liquid level control unit with filling and emptying configurations.
- The device can be utilized as a three-probe system to regulate the HIGH and LOW levels of a reservoir, or as a two-probe system for alarm purposes.
- By connecting all commons (pin7), a reservoir can use up to four LV1.
- It is also possible to modify the unit's sensitivity.
Features:
- Adaptable sensitivity feature with fail-safe control.
- Probe signal with low voltage.
- LEDs for the power supply ON and relay ON.
- Selectable DIP switch on back COMPLETING/EMPTYING.
- Failure-safe monitoring and control of elevated and/or lowered levels.
- AC probe signal modulation to avoid electrolytic corrosion.
Liquid conductive controller:
- FUNCTION: Emptying/ filling.
- CONTACT: 10A SPDT.
- PROBE VOLTAGE: 4 VAC.
- PROBE CURRENT: 2.5mA.
- PROBE FREQUENCY: 100Hz.
- SENSITIVITY: 4 - 50Ω.
- RATED VOLTAGE: 250V.
- MECHANICAL LIFE: 10x106 cycles.
- PROTECTION INDEX IP : IP 20.
- OPERATING TEMPERATURE: -10 to + 50°C.
- STORAGE TEMPERATURE: -50 to + 85°C.
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
| Brand | Electrodev |
|---|
