LIR 1 5M8 V

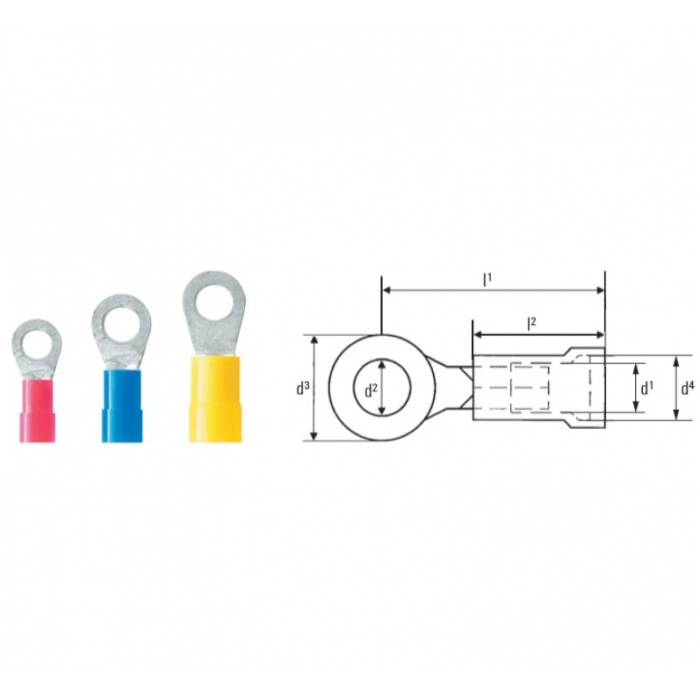

LIR 1,5 M8 V:
- PVC-based ring-cable connector with insulation.
- Commercially available designs.
- unsoldered.
- With a conical entrance funnel.
- plug for cable, terminal end,1.5 mm³ insulated cable connector with 0.5 mm³ to 1.5 mm² range.
Specifications dimensions and weights:
- Depth: 5.9 mm.
- Depth (inches): 0.232 inch.
- Width: 28.1 mm.
- Width (inches): 1.106 inch.
- Net weight: 0.7 g.
Technical data:
- Description of article: Insulated ring-cable connector 1.5 mm² / M8.
Connectors:
- Conductor cross-section: 1.5 mm².
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section, min.: 0.5 mm².
- Connection density (S1): 0.75 mm.
- Dimension: M 8.
- Dimension (bolt): M 8.
- Identification colour: red.
- Inside diameter (d1): 8.4 mm.
- Insulation: Available.
- Material/plastic: PVC.
- Outside diameter (d): 11.6 mm.
- Plastic collar diameter (D): 4 mm.
- Plastic collar length (b): 11.3 mm.
| Brand | Weidmuller |
|---|
