LIR 2 5M3 V
LIR 2,5 M3 V:
- PVC-based ring-cable connector with insulation.
- Commercially available designs.
- unsoldered.
- With a conical entrance funnel.
- plug for cable, terminal end,2.5 mm³ insulated cable connector with 1.5 mm³ to 2.5 mm² range.

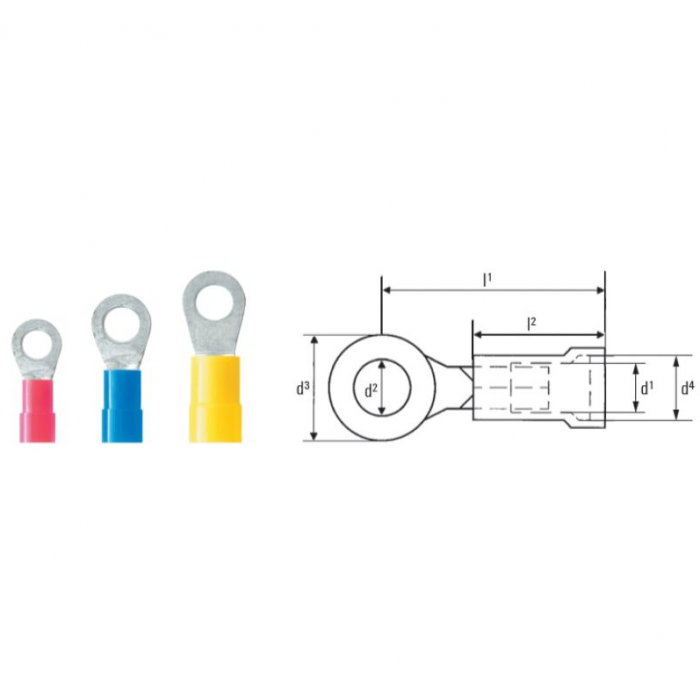

Specifications dimensions and weights:
- Depth: 6.2 mm.
- Depth (inches): 0.244 inch.
- Width: 20.6 mm.
- Width (inches): 0.811 inch.
- Net weight: 0.72 g.
Technical data:
- Description of article: Insulated ring-cable connector 2.5 mm² / M3.
Connectors:
- Conductor cross-section: 2.5 mm².
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 1.5 mm².
- Connection density (S1): 0.8 mm.
- Dimension: M 3.
- Dimension (bolt): M 3.
- Identification colour: Blue.
- Inside diameter (d1): 3.2 mm.
- Insulation: Available.
- Material/plastic: PVC.
- Outside diameter (d): 6.4 mm.
- Plastic collar diameter (D): 4.5 mm.
- Plastic collar length (b): 11.3 mm.
| Brand | Weidmuller |
|---|
