LIR 2 5M4 V
Pricing available on request

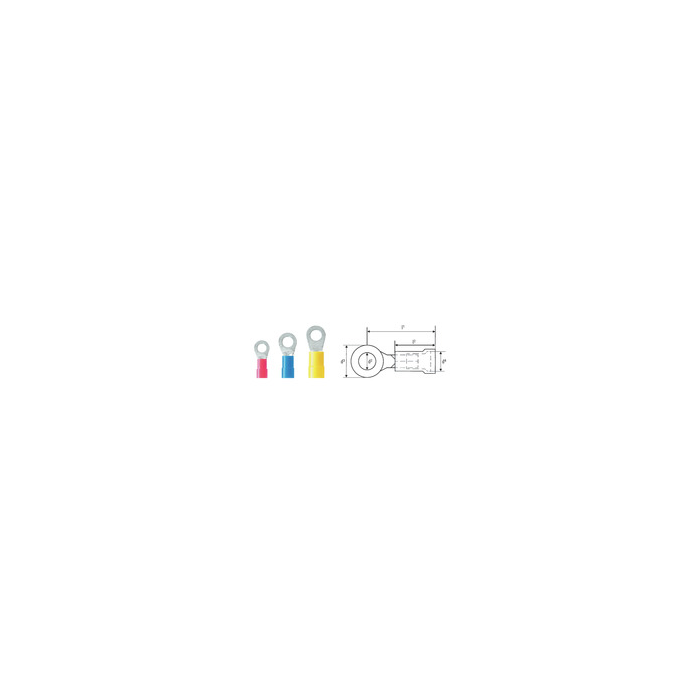

Insulated ring-cable connector made from PVC:
- Designs that are commercially accessible.
- It is not soldered.
- With a conical entrance funnel.
Specifications:
- Version: cable lug, terminal end, Insulated cable connector.
- Quantity: 100.
- Depth: 6.2 mm.
- Width: 22.4 mm.
- Insulated ring-cable connector 2.5 mm² / M4.
Connectors:
- Conductor cross-section: 2.5 mm².
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 1.5 mm².
- Connection density (S1): 0.8 mm.
- Connection length (I): 19.05 mm.
- Dimension: M 4.
- Dimension (bolt): M 4.
- Identification colour: blue.
- Inside diameter (d1): 4.4 mm.
- Insulation: Available.
- Material/plastic: PVC.
- Outside diameter (d): 8.5 mm.
- Plastic collar diameter (D): 4.5 mm.
- Plastic collar length (b): 11.3 mm.
| SKU | 9200170000 |
|---|---|
| Brand | Weidmuller |
