LIS 2 5M3 5 V
Pricing available on request

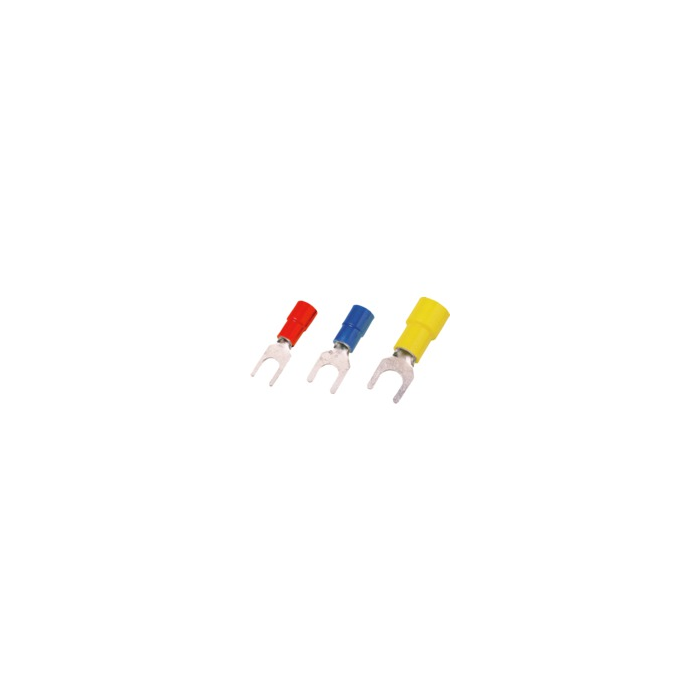

Insulated forked-cable connector made from PVC or PC/PA:
- Designs that are commercially accessible.
- It is not soldered.
- With a conical entrance funnel.
Specifications:
- Version: cable lug, terminal end, Insulated cable connector.
- Quantity: 100.
- Depth: 6.1 mm
- Width: 22.2 mm.
- Insulated forked-cable connector 2.0 mm² / M3.5.
Connectors:
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 1.5 mm².
- Connection density (S1): 0.8 mm.
- Dimension: M 3.5.
- Dimension (bolt): M 3.5.
- Identification colour: blue.
- Inside diameter (d1): 3.7 mm.
- Insulation: Available.
- Material/plastic: PVC.
- Outside diameter (d): 6.4 mm.
- Plastic collar diameter (D): 4.5 mm.
- Plastic collar length (b): 11.3 mm.
| SKU | 9200360000 |
|---|---|
| Brand | Weidmuller |
