Specifications:

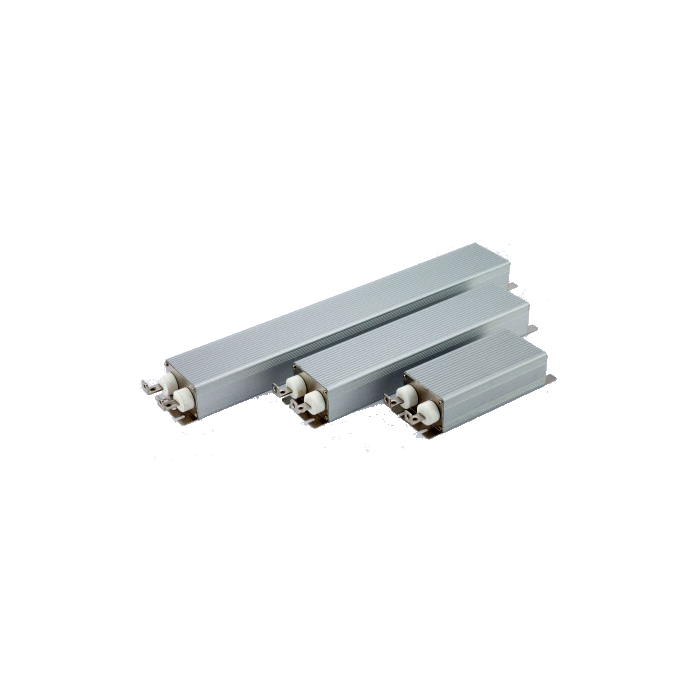

• LS MCRF Brake Resistors
• 400 V Drives
• 2 x screw terminal Lugs
• Brake Resistor - MCRF-1200
• 60 Ω 1200W 400V
• 11kW 100% @ 5% Duty or 7.5kW 150% @ 5% Duty
• No Thermostat
• Dimensions: L = 400mm W = 70mm H = 45mm
• Braking torque: 150%
• Voltage class: 400 volts
• Temperature range: -55 ° C - 200 ° C
• Insulation resistance: over 100MΩ
• Dielectric strength: AC 2,500V/1 min.
• Temperature coefficient: ±260 ppm/°C Max.
• Resistor wattage range: 300-2000(W)
