Specifications:

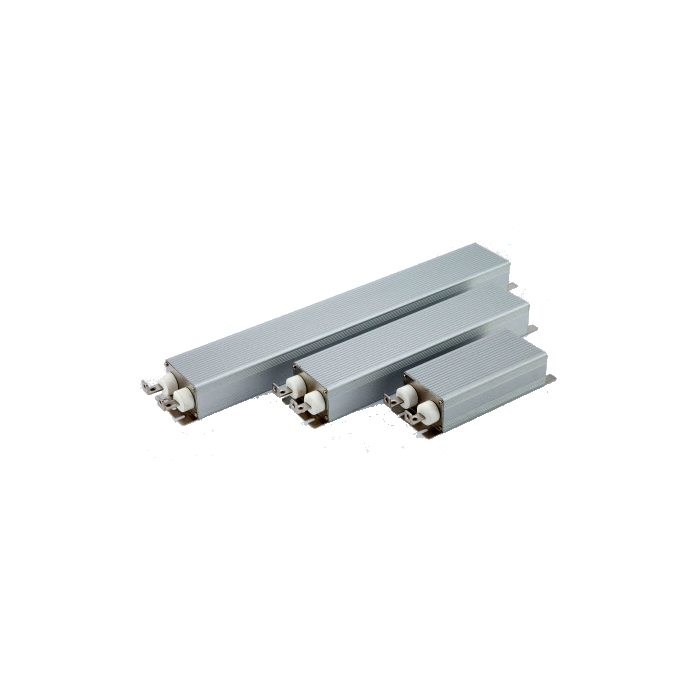

• LS MCRF Brake Resistors.
• 400 V Drives.
• 2 x screw terminal Lugs.
• Brake Resistor - MCRF-400.
• 200 Ω 400W 400V.
• 3.7/4kW 100% @ 5% Duty or 2.2kW 150% @ 5% Duty.
• No Thermostat.
• Dimensions: L = 220mm W = 70mm H = 45mm.
• Braking torque: 150%.
• Temperature range: -55 ° C - 200 ° C.
• Voltage class: 400 volts.
• Temperature range: -55 ° C - 200 ° C.
• Insulation resistance: over 100MΩ.
• Dielectric strength: AC 2,500V/1 min.
• Temperature coefficient: ±260 ppm/°C Max.
• Resistor wattage range: 300-2000 (W).
