MCRF-ST 12 Ohms 5 kW 30-37kW 150% @ 5% Duty
Pricing available on request
Specifications:

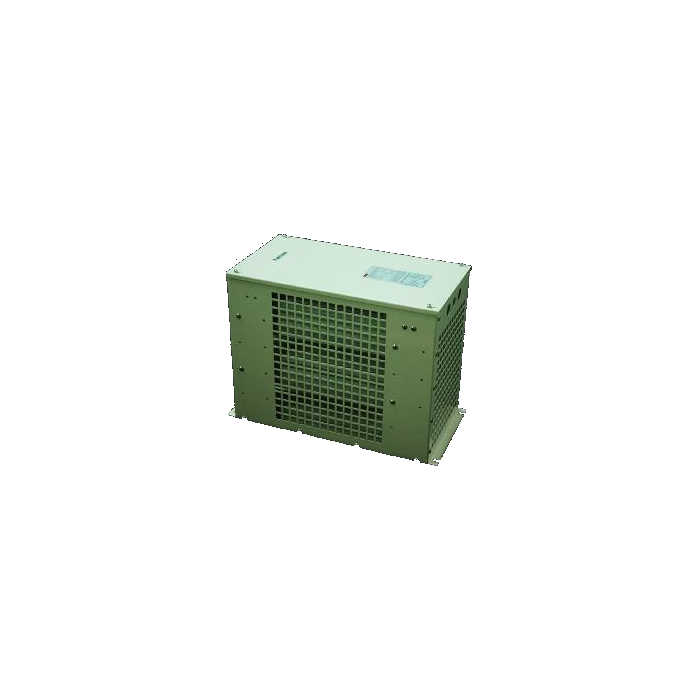

- LS MCRF-ST Brake Resistors.
- 400 V Drives.
- Enclosed Type with Thermistor.
- Brake Resistor - MCRF-ST 5kW.
- 12 Ω 5kW 400V.
- 30/22kW 150% @ 5% Duty (OD).
- Dimensions: L = 550mm W = 180mm H = 182mm.
- Braking torque: 150%.
- Temperature range: -55 ° C - 200 ° C.
- Voltage class: 400 volts.
- Insulation resistance: over 20MΩ.
- Dielectric strength: AC 2,500V/1 Min.
- Temperature coefficient: ±260 ppm/ °C Max.
- Resistor wattage range: 12~60 (KW).
- Build-in thermostat sensor: B contact.
| SKU | 6409018600 |
|---|---|
| Brand | LS Electric |
