Specifications:

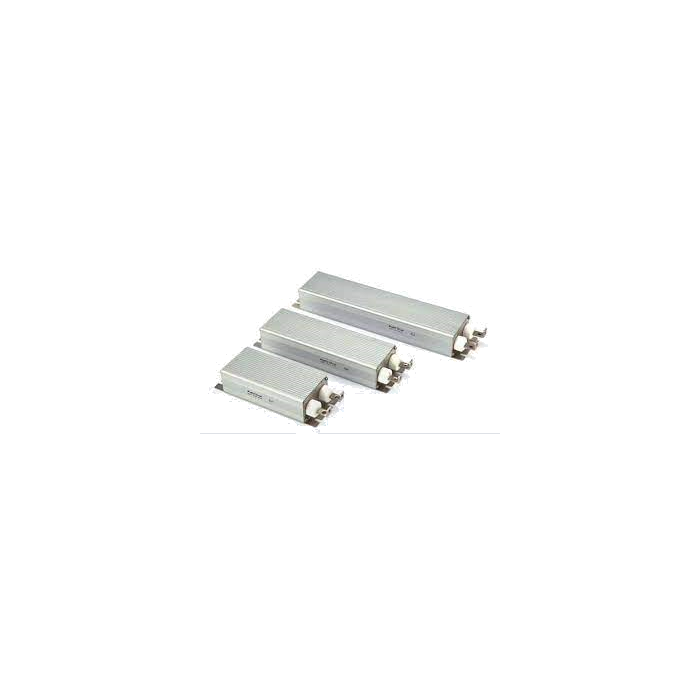

• LS MCRF Brake Resistors
• 400 V Drives
• 2 x screw terminal Lugs
• Brake Resistor - MCRS-2400
• 30 Ω 2400W 400V
• 22kW 100% @ 5% Duty or 15kW 150% @ 5% Duty
• No Thermostat
• Dimensions: L = 470mm W = 98mm H = 68mm
• Braking torque: 150%
• Temperature range: -55 ° C - 200 ° C
• Voltage class: 400 volts
• Insulation resistance: over100MΩ
• Dielectric strength: AC 2,500V/1 Min.
• Temperature coefficient: ±260ppm/°C Max.
• Resistor wattage range: 2400 (W)
