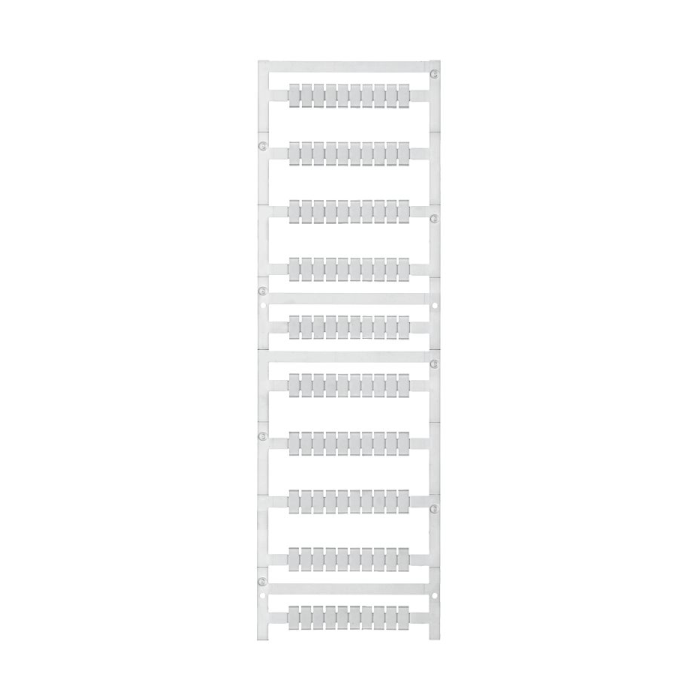

MF-W 9/5 MC NE WS
Pricing available on request
MF-W 9/5 MC NE WS:
- The Weidmüller marker system, known as MultiFit, is utilized by various terminal manufacturers.
- Similar to the Weidmüller Dekafix, the MultiFit markers are ready for use with conventional printing.
- We recommend running a test with sample markers on the terminals when using MultiFit for the first time.
- One marker that works with several terminal makes.
- Markers are ready to use and have standard printing.
- With the PrintJet CONNECT or Plotter, blank markers can be printed.
- Individual printed markers are sent in accordance with the customer's CAE data or specifications.
- A single marking system for all purposes.
Dimensions and weights:
- Height: 9 mm.
- Height (inches): 0.354 inch.
- Width: 5 mm.
- Width (inches): 0.197 inch.
- Net weight: 0.164 g.
Temperatures:
- Operating temperature range: -40...100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
- RoHS Compliance Status: Compliant without exemption.
General data:
- Application/manufacturer: WAGO, Legrand.
- Colour: white.
- compatible printer: PRINTJET CONNECT.
- Halogen: No.
- Material: Polyamide 66.
- Material colour according to resistance code: 9.
- Number of markers per combination: 1 MultiCard = Terminal marker.
- Number of markers per packaging unit:
- Form of supply: MultiCard.
- Operating temperature range: -40...100 °C.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Printed characters: neutral.
- Type of printing: neutral.
- UL 94 flammability rating: V-2.
- Width: 5 mm.
Connector markers:
- Pitch in mm (P): 5 mm.
| SKU | 1816270000 |
|---|---|
| Brand | Weidmuller |
