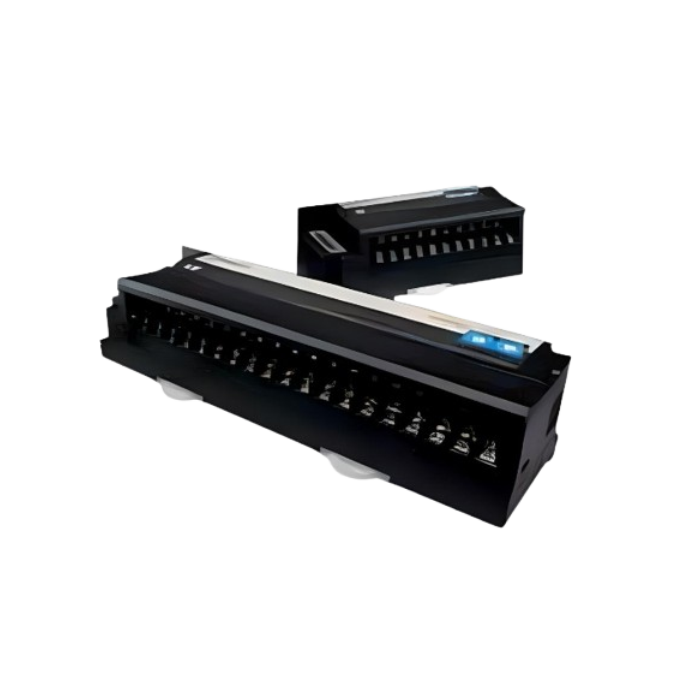

Smart I/O Block Type Modbus, DC24V (Rating), DC input 16 points
Description:
- For use in industrial automation applications, the LS Electrical Smart I/O BLOCK TYPE Modbus DC24V GDL-D22C is a flexible and effective programmable logic controller (PLC).
- With its 16 DC input points, it can be used for a range of control and monitoring applications.
- The Smart I/O series, of which this module is a part, is renowned for its dependable operation and simplicity of integration into current systems.
- The Modbus communication protocol is supported by the GDL-D22C, which guarantees smooth connectivity and data sharing with other networked devices.
Specifications:
- Input Voltage: DC 24V.
- Number of Input Points: 16.
- Rated Input Current: 5mA per point.
- Maximum Load: 0.5A per point, 3A per common.
- Operating Temperature: 0°C to 55°C.
- Storage Temperature: -25°C to 70°C.
- Operating Humidity: 5% to 95% RH (non-condensing).
- Storage Humidity: 5% to 95% RH (non-condensing).
- Vibration Resistance:
- Intermittent Vibration: 5≤f<8.4Hz, 3.5mm amplitude; 8.4≤f≤150Hz, 9.8m/s² acceleration.
- Continuous Vibration: 5≤f<8.4Hz, 1.75mm amplitude; 8.4≤f≤150Hz, 4.9m/s² acceleration.
- Communication Protocol: Modbus.
- Connector Type: 5-pin connector for communication cables.
- LED Indicators: Power, Module Status, Network Status.
- Mounting: DIN rail mountable.
| Brand | LS Electric |
|---|
