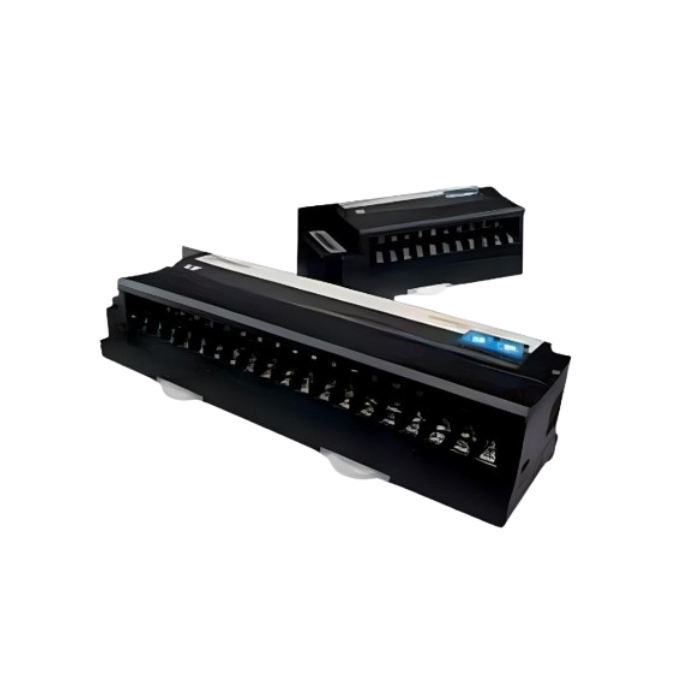

Modbus Mixed 16 Channel Input / 16 PNP Transistor Output Module
Description:
- Made for industrial automation applications, the LS Electrical Smart I/O BLOCK TYPE Modbus GSL-DT4C1 is a flexible and effective module.
- It has a sturdy design that guarantees dependable operation in a range of settings.
- It is simple to combine this module with other systems and devices because it supports the Modbus communication standard.
- It gives industrial operations plenty of connectivity choices for controlling and monitoring, with 16 DC inputs and 16 transistor outputs (sink type, 0.5A).
Specifications:
- Power Supply: DC 24V.
- Inputs: 16 DC inputs.
- Outputs: 16 transistor outputs (sink type, 0.5A).
- Communication Protocol: Modbus.
- Mounting: DIN rail.
- Operating Temperature: -10°C to 55°C.
- Storage Temperature: -25°C to 70°C.
- Dimensions: 90mm x 70mm x 60mm.
- Weight: 200g.
- Certifications: CE, UL.
Brand | LS Electric |
---|
