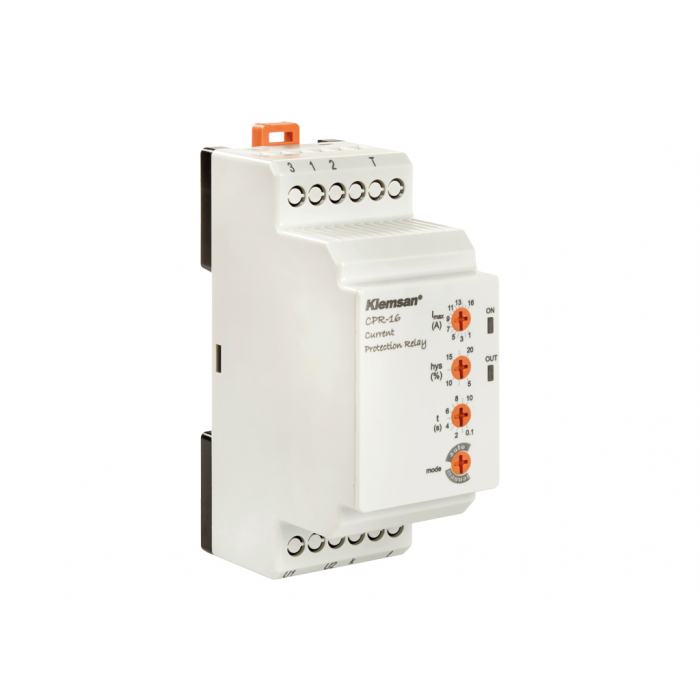

MODULAR CURRENT MONITORING RELAY
Specifications:
- CPR CURRENT MONITOR PROTECT RELAYS
- Casing Width (mm): 36
- Connections: Screw Terminal
- Response Time for Monitoring Any Function Max: 100ms
- Type of Output: Relay
- Supply Frequency: 35-70Hz
- Control Input Voltage Range: Same with supply voltage
- Operating Frequency: 35-70Hz
- Protection Class: IP20
- Mounting Type: Panel or Rail
- Weight(g): 95
Adjustable Current Protection:
- Upper Limit: 1 => 16AAC arası
- Hysteresis: 5 => 20% x Upper limit
- Delay Time: 0.1 => 10 sec
Auxiliary Contacts:
- Type: 1 C/O (SPDT)
- Max. Ratings - AC (for NO Side): 16A/250V; 4000VA
- Mechanical Lifetime: 107 operations
- Electrical Lifetime Operations (for NO Side): 1x105
Supply Voltage:
- DC: 24-300VDC
- AC: 36-300VAC
Ambient Conditions:
- Operating Temperature: -20°C +60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
Power Consumption:
- DC: 1W
| Brand | Klemsan |
|---|
