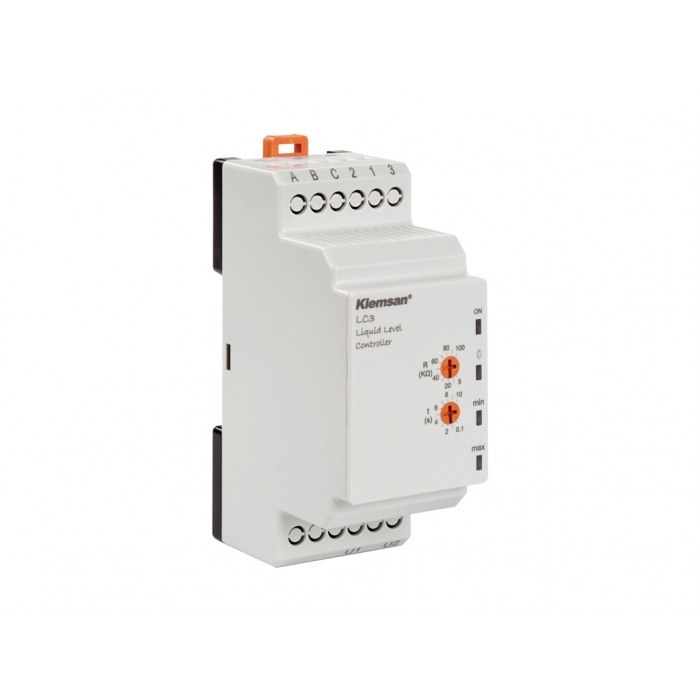

MODULAR LIQUID LEVEL CONTROLLER
Specifications
- LIQUID LEVEL CONTROLLER
- Casing Width (mm): 36
- Connections Screw: Terminal
- Functions: LC
- Type of Output: Relay
- Sensitivity Adjustment Rate: 5 - 100 KΩ
- Supply Frequency: 35-70 Hz
- Recovery Time Max.: 100ms
- Protection Class: IP20
- Weight (g): 82
- Mounting Type: Panel and Rail
Auxiliary Contacts:
- Type: 1 C/O (SPDT)
- Max. Ratings - AC (for NO side): 5A/250V; 1250VA
- Max. Ratings - DC (for NO side): 5A/30VDC; 150W
- Mechanical Lifetime: 10 operations
Time Range:
- Timing-1: 1s => 1s
Supply Voltage:
- AC 150-500VAC
Ambient Conditions:
- Operating Temperature: -20 to + 60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
- Power Consumption: AC:<7VA
| Brand | Klemsan |
|---|
