Functions:

• A - Delay-on (making relay switches after a predetermined amount of time).
• B - Interval (relay switches with a timed setting when turning on).
• C - Equivalent repeat, beginning at the off time.
• D - Equal repeat (beginning at the scheduled time).
• E - Relay activates when an external contact is closed. Timing starts when the doors open.
• F - Pulse regulated interval; time starts when the exterior contact closes.
• G - Pulse-controlled interval, whose timing starts when an external contact is opened.
• H - Delay in both the opening and shutting of external contacts.
• I - Step relay (relay that modifies its state each time an external contact closes).
• J - Uneven repeat OFF time configurable on time fixed at 0.5 seconds for the pulse generator.


Specifications:

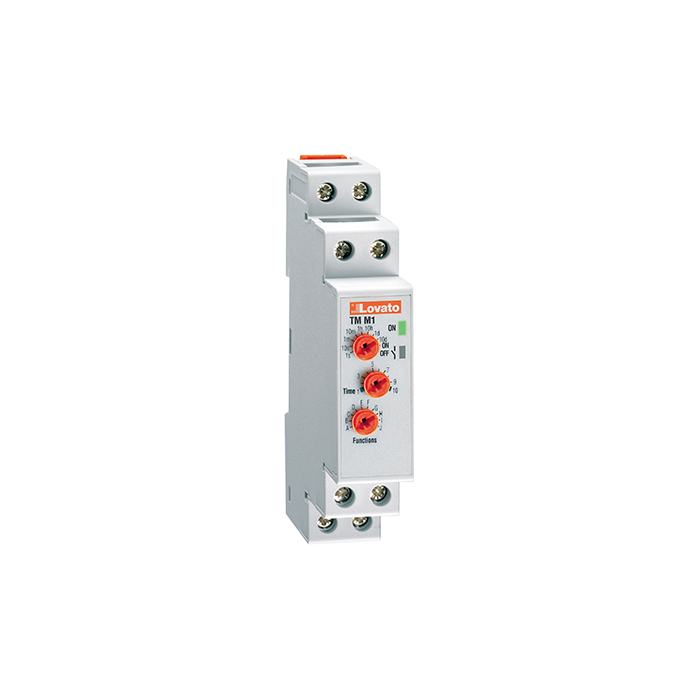

• SERIES: TM series
• SUPPLY: 12 - 240 VAC/DC
• DESCRIPTION: Multi-range, multi-voltage, multi-function timer
• CONTACT: 1 changeover
• MOUNTING: DIN rail mount
• MODULES WIDTH IN 17.5 MM: 1
