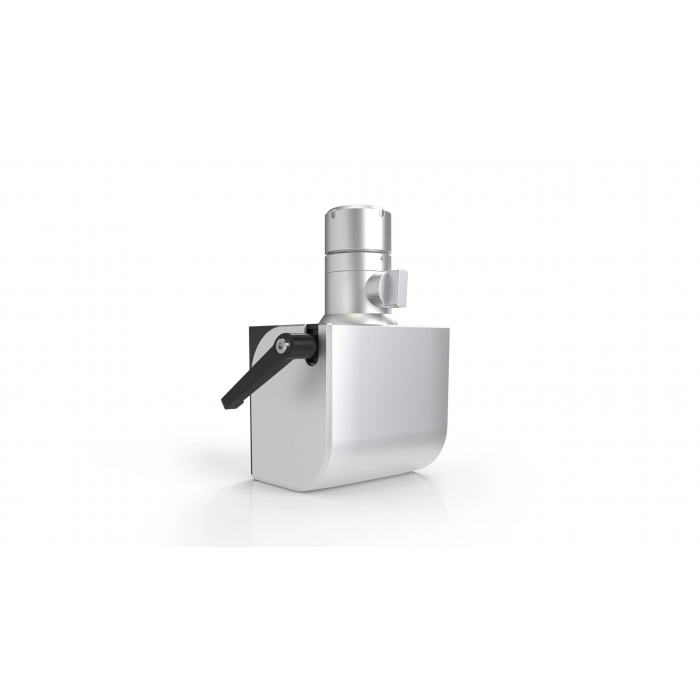

Mounting arm adapter with clamping lever for 48 mm tube C9900-M761
Material: aluminum/ABS
Installation: M6 threaded holes in distance of 100 x 100 mm and 70 x 130 mm
Max. angle of rotation: ±170°
Max. tilt angle: ±12°
Payload: 25.0 kg
Torque (M6 screw): 6 Nm
Torque (threaded pin): 3 Nm
Torque (cap nut): 20 Nm
Immersion depth 48 mm tube: 34 mm
Tolerance 48 mm tube: -0.1 - +0.8 mm
Dimensions (W x H x D): 206.2 mm x 255 mm x 126 mm
Weight: 3.0 kg
Protection rating: IP40
The C9900-M761 and C9900-M763 mounting arm adapters allow mounting arm installation from the bottom or top of a 48 mm mounting arm system. The adapter can be rotated and tilted as usual. The advantage of integrated solutions is that the decision as to whether the installation is to be performed from above or below can be made on site. This means that only one type of panel is required, which gives the machine design maximum flexibility.
The C9900-M761 adapter has a clamping lever that fixes the tilt. This adapter is especially recommended for large display diagonals.
Both adapters are intended for the CP32xx-1600, CP37xx-1600 and CPX37xx Panel PC series as well as the CP39xx Control Panel series.
