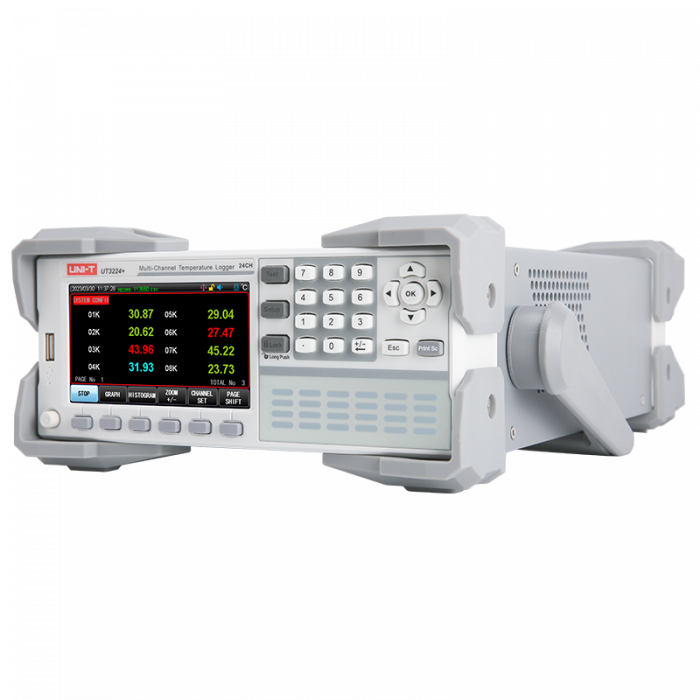

Multi-channel Temperature Logger, UT3248+, 48 channels
UT3200+ Series, Multi-channel Temperature Logger:
- 4.3-inch true-colour LCD screen.
- 6-digit display for the main parameter.
- supports thermocouples of the K/N/E/J/T/R/S/B types.
- Range of test: -200°C to 1800°C.
- Resolution of the temperature test to 0.01 °C.
- Fast and slow are the two scan speeds.
- Automatic identification of thermocouple failures.
- Graph display mode, column chart, and intuitive data display.
- adjustment for cold junctions.
- 8G U disk, support for U disk storage, and a standard USB host interface.
- When the power is turned off, file management settings will remain intact.
- A standard 2-meter K-type thermocouple can monitor temperatures between 0 and 200°C.
- Overrun reading colour change and overrun alert for temperature upper and lower limits.
- LAN interface, standard RS-232C, SCPI, and Modbus protocol support.
Specifications:
- UT3200+ Series, Multi-channel Temperature Logger.
- Display mode Direct numerical reading, curve chart, histogram.
- Type Thermocouple: J, K, T, E, S, N, B, R.
- Measuring range -200.0° C-1800.0° C (the range will change with diff errant thermocouple model).
- Resolution 0.01° C.
- Scanning speed Fast, slow.
- Sorting function Build-in data sorting can set upper/lower temperature limit alarm for each channel.
- Alarm function Upper/lower temperature limit alarm.
- User calibration User calibration of each channel is allowed.
- Button functions Lock -- keyboard lock, Print Sc – screenshot.
- Power AC 100-240V 50/60Hz.
- Display mode 4.3-inch LCD screen.
- Product size (W×H×D) 214mm×88.2mm×330.3mm.
| SKU | UT3248-Plus |
|---|---|
| Brand | UNI-T |
