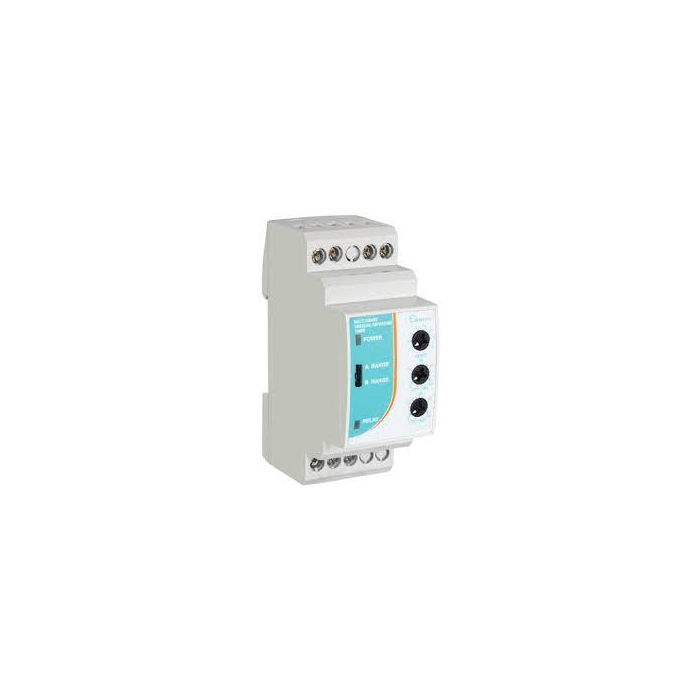

MULTI FUNCTION & MULTI RANGE TIMER 24V AC/DC
Multi-function multi-range Timer - DMFT:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
- This multi-function, multi-range timer is made with the newest technology and has all the often-used features.
- Front and rear panel positioning is possible with DIN rail mounting.
- The device will reset if the function or time range is altered using the front-mounted controls.
Features:
- Controlled by a microprocessor.
- Failsafe feature.
- Time range and function parameters are customizable on the front face.
- Time settings are customizable on the front face.
- Mountable on a modular 35.5mm DIN rail.
- 0.3 to 60 hours’ Time intervals that can be changed.
- Eight functions that can be chosen.
- Relay with 10A SPDT output.
- Relay and power supply ON LED indicator.
Specifications:
- DESCRIPTION: Multi-function, multi-range electronic timer
- TIME RANGE (NUMBER): (1) 0.6 - 6s, (2) 6 - 60s, (3) 0.6 - 6m, (4) 6 - 60m, (5) 0.6 - 6h, (6) 6 - 60h, (7) ON, (8) OFF
- CONTACT: 10 A SPDT
- RATED CURRENT: 10A.
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
