MULTI-FUNCTION PULSE CONTROLLED TIMER
Specifications:
- MODULAR TIMER MULTIFUNCTION (PULSE CONTROL)

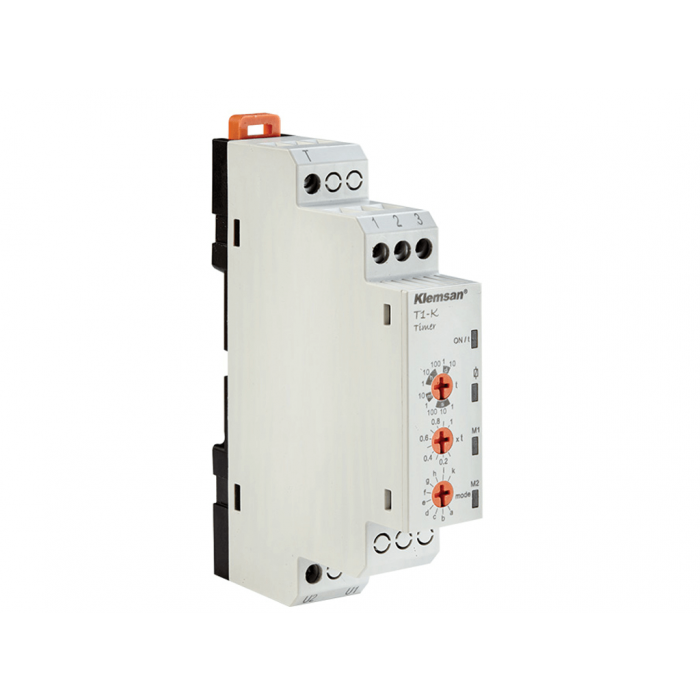

- T1-K Multi-function modular timer (pulse controlled)
- Casing Width (mm): 17,5
- Connections: Screw Terminal
- Functions: a, b, c, d, e, f, g, h, i, k
- Type of Output: Two Relays
- Supply Frequency: 35-70 Hz
- Trigger Input Voltage: 24-300VAC/DC.
- Recovery Time Max: 100ms
- Protection Class: IP20
- Weight (g): 66
- Mounting Type: Panel and Rail
Technical Data:
Auxiliary Contacts:
- Type: 1 C/O (SPDT)
- Max. Ratings - AC (for NO side): 5A/250V; 1250VA
- Max. Ratings - DC (for NO side): 5A/30VDC; 150W
- Mechanical Lifetime: ≥ 107 operations
- Electrical Lifetime Operations (for NO side): 5x104 (5A at 250VAC) 1x 105 (5A at 30VDC)
Time Range:
- Timing-1: 1s => 60s
Supply Voltage:
- DC: 24-300VDC
- AC: 24-300VAC
Ambient Conditions:
- Operating Temperature: -20 to + 60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
Power Consumption:
- DC: 1.25W
- AC: 2.5VA
| Brand | Klemsan |
|---|
