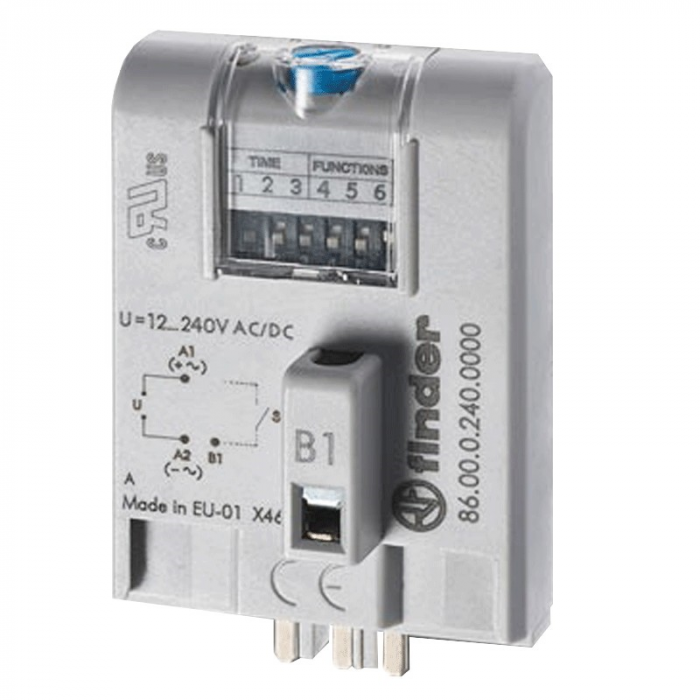

MULTI-FUNCTION TIMER MODULE 12-240VAC/DC
Socket modules in Series 99:
- Plug-in modules are useful add-ons for relays that provide timing, diode protection, RC circuits, LED indication (for observing relay status from a distance), bypass, and all socket-mounted plug-in relay features.
- The modules improve the functioning of the relay by only plugging them into designated sockets.
Depending on the module used, they can offer:
- Coil back emf suppression upon switch-off.
- LED indicator to display the coil's powered state.
- Use of reverse polarity protection across the coil terminals is implemented.
- Problematic leakage currents in the coil circuit are bypassed.
Timer modules:
- Multi-function, multi-voltage timer module.
- Time range1s, 10s, 100s, 10m, 100m, 10hr, 100hr (adjustable).
- Plugs directly into sockets converting standard relays into timing devices.
- VOLTAGE: 12 - 240 VAC/DC
- DESCRIPTION: Multi-range, multi-function timer module
- LED COLOUR: Green
| Brand | Finder |
|---|
