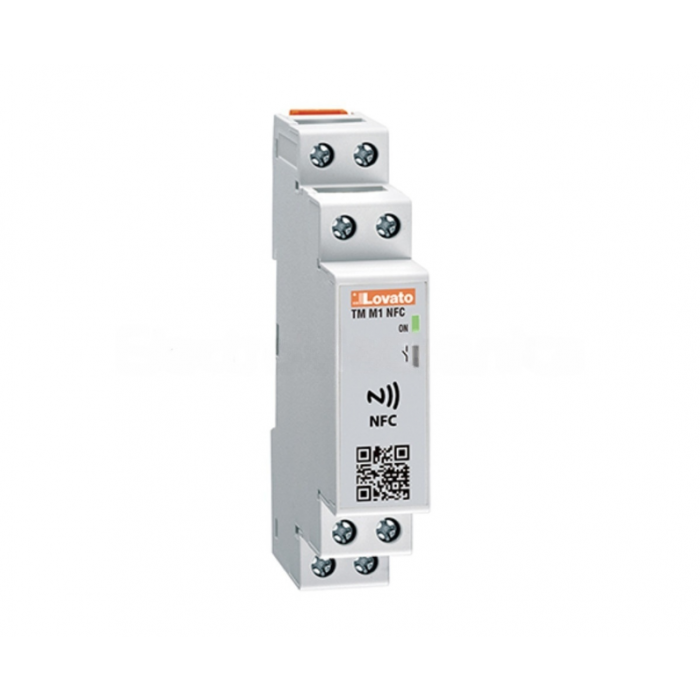

MULTI-FUNCTION TIMER RELAY + NFC
Modular timing devices of the TM series:
- Timer with several functions, voltages, and ranges.
- Relay switch 8A - 250 VAC.
- Outstanding stability and precision of time
- Programmable by NFC (no front adjustment knobs).
- Communication in the Near Field (NFC).
- Programmable by NFC (no front adjustment knobs).
- Programmable with an app and NFC technology on a tablet or smartphone.
- Using the app, you may secure access to the settings by creating a four-digit password.
- Excellent accuracy in time settings and tripping thresholds is ensured by programming via NFC.
Functions:
- A - On-delay (delay-on make relay switches after preset time)
- B - Interval (relay switches for preset time on energising)
- C - Equal repeat (start with OFF time)
- D - Equal repeat (start with ON time)
- E - Relay energises ON closing external contact. timing begins on opening.
- F - Pulse controlled interval (timing begins on closing of external contact)
- G - Pulse controlled interval (timing begins on opening of external contact)
- H - Delay on closing of external contact as well as opening of contact
- I - Step relay (relay changes state on each closure of external contact)
- J - Pulse generator unequal repeat OFF time adjustable on time fixed 0.5sec
Specifications:
- SERIES: TM series
- SUPPLY: 12 - 240 VAC/DC
- DESCRIPTION: Multi-range, multi-voltage, multi-function timer with NFC
- CONTACT: 1 changeover
- MOUNTING: DIN rail mount
- MODULES WIDTH IN 17.5 MM: 1
| Brand | Lovato electric |
|---|
