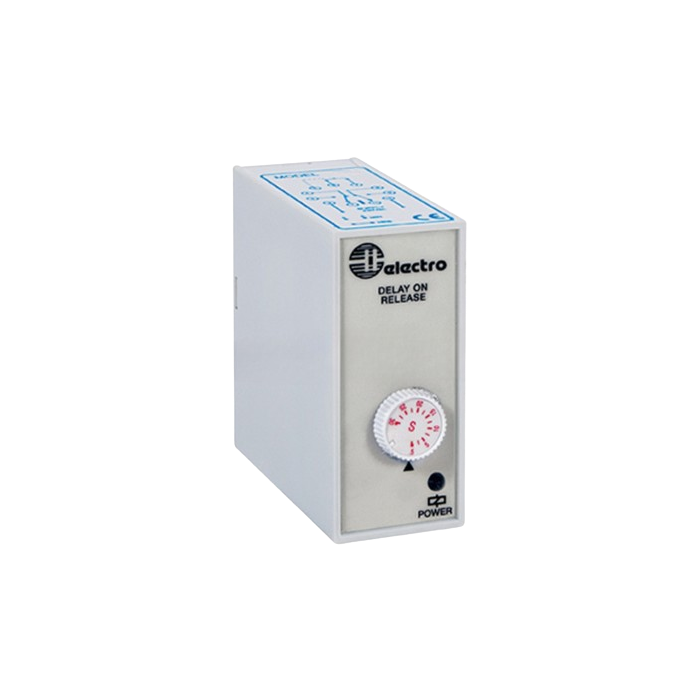

MULTI-RANGE, MULTI-FUNCTION TIMER 400VAC
Multiple functions (four times as many) 4-time range multi-range:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Plug-in timers with many functions and a range that cover all frequently used features.
- The device will reset if the function or time range is altered using the front-mounted controls.
Features:
- Recurrence deviation: 0.2% Microprocessor-oriented architecture.
- Range of time: 0.3 seconds to 60 hours.
- LEDs for the power supply ON and relay ON.
- Four function selections on the rear DIP switch.
- Eight timer ranges are selectable via the rear DIP switch.
Specifications:
- TIME RANGE: 0.3 second - 60hours
- DESCRIPTION: multi-function, multi-range electronic timer
- CONTACT: 10A DPDT
- FUNCTION: On-delay/ Interval/ Equal repeat/ Interval (pulse controlled)
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
