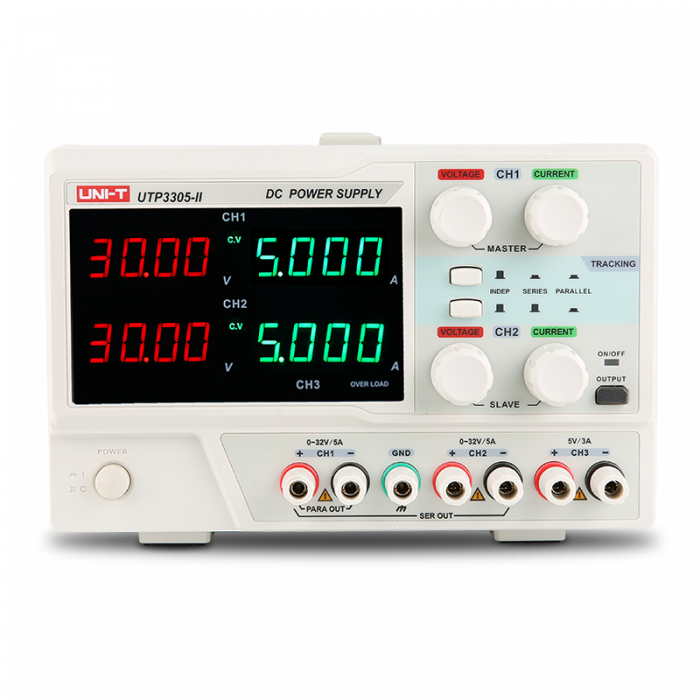

Non-Programmable Linear Power Supplies, UTP3303-II, DC, 3-Channel
UTP3300-II Series, Non-Programmable Linear Power Supplies:
- Features include three-channel linear DC power supplies.
- High-precision four-digit voltage and current display with 10mV/1mA resolution (UTP3300-II Series).
- Minimal noise and ripple.
- Constant voltage/current, OVP, OCP, OTP, and reverse polarity safety.
- Series/parallel output function.
- On/off control of the output.
- Intelligent temperature control fan (only for the UTP3300-II Series).
Specifications:
- UTP3300-II Series, Non-Programmable Linear Power Supplies.
- Output voltage 0-32V (CH1, CH2),5V(CH3).
- Output current 0-3A (CH1, CH2),3A(CH3).
- Output power 207W.
- Display mode 4-bit voltage and current dual display.
- Power Input voltage: 115V AC/230V AC; Frequency: 47Hz-63Hz.
- Display 4 windows, LED.
- Product net weight 9.2kg.
- Product size (W×H×D) 319mm×146mm×226mm.
| SKU | UTP3303-II |
|---|---|
| Brand | UNI-T |
