NSCH 1M

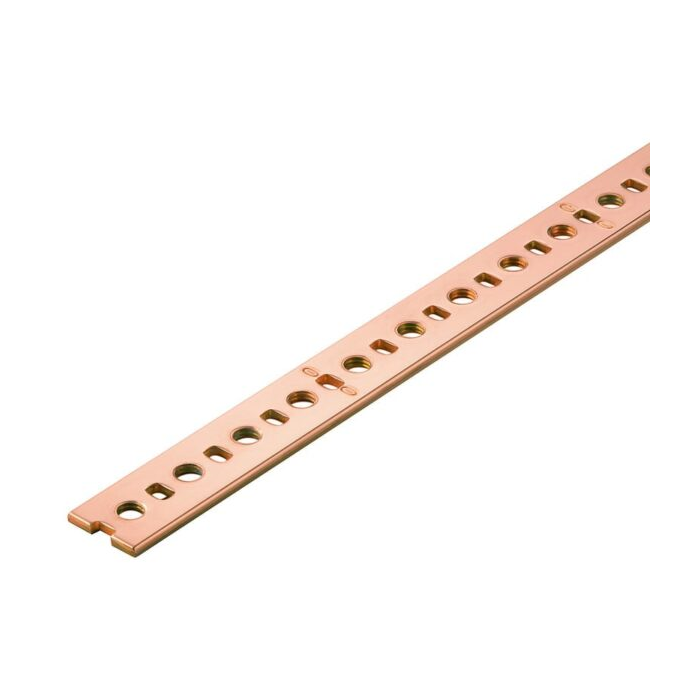

Terminal busbar:
- Copper has the best electrical conductivity of any metal employed, resulting in the highest short-circuit resistance possible.
- Copper busbar is the most used variant.
Specifications weights and dimensions:
- Depth: 2 mm.
- Height: 15 mm.
- Width: 1,000 mm.
- Net weight: 23.1 g.
Material data:
- Material: Copper.
- Surface finish: Untreated.
- Colour: Natural.
Additional technical data:
- Installation advice: Mount directly.
Conductors for clamping (rated connection):
- Type of connection: Screw connection.
Dimensions:
- TS 35 offset: 39 mm.
General:
- Installation advice: Direct mounting.
- Surface finish: untreated.
Rating data:
- Rated current: 24 A.
| Brand | Weidmuller |
|---|
